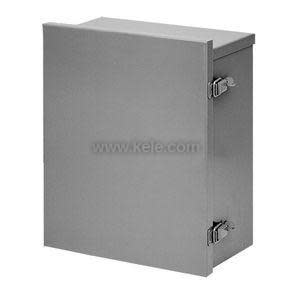

Grey metal outdoor enclosure with hinged door and two latches

A8R86HCLO | Hoffman Enclosures | Enclosures

Type 3R Enclosure/Lift-Off Hng, Bulletin A3LO (Hinged Cover Lift-Off Type 3R Enclosures), Size/Dims: 8.00x8.00x6.00, Material/Finish: Galv/paint

Brand:Hoffman Enclosures

MPN:A8R86HCLO

SKU:A-8R86HCLO

List Price:

$252.00

Today's Price:

$131.04

product datasheet

catalog page

product specifications

Type

Enclosure Only

Material

Steel

Enclosure Width

8 in

Enclosure Height

8 in

Enclosure Depth

6 in

Enclosure Rating

NEMA 3R

Mount

Hinged

product series features

Drip-shield top and seam-free sides, front, and back
Galvanized steel lift-off hinges with stainless steel pins
Cover fastened securely with draw-pull catches
Provisions for padlocking on each draw-pull catch
Embossed mounting holes on back of enclosure
Gasketing along top of door
ANSI 61 gray polyester-powder coating inside and out over galvanized steel
Optional steel panels with white finish
Fans, heaters, louvers, and windows available
UL File #E27567
CSA File #LL42184, RoHs
One-year warranty

more information & related documents

Series Description

Hoffman A-HCLO Series NEMA 3R hinge-cover lift-off enclosures can be used to house controls and instruments. Each NEMA enclosure provides protection in outdoor installations against rain, sleet, and snow. The NEMA 3R boxes also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.

Kele Description

NEMA 3R 8X8X6 ENCLOSURE

Manufacturer

Hoffman Enclosures
