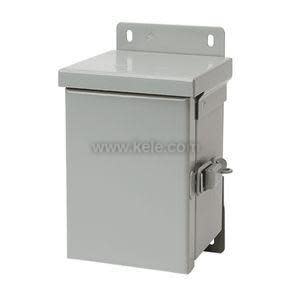

Compact gray cabinet with a hinged lid and side latch.

A8R64HCR | Hoffman Enclosures | Enclosures

Type 3R Enclosure, Hng Cover, Bulletin A3SM (Hinged Cover Type 3R Small Enclosures), Size/Dims: 8.00x6.00x4.00, Material/Finish: Galv/paint

Brand:Hoffman Enclosures

MPN:A8R64HCR

SKU:A-8R64HCR

List Price:

$264.00

Today's Price:

$137.28

product datasheet

catalog page

Lead time of 6 days. Chat with Kele experts now

product specifications

Type

Enclosure Only

Material

Steel

Enclosure Width

6 in

Enclosure Height

8 in

Enclosure Depth

4 in

Enclosure Rating

NEMA 3R

Mount

Hinged

product series features

Drip-shield top and seam-free sides, front, and back
Galvanized steel lift-off hinges with stainless steel pins
Cover fastened securely with draw-pull catches
Provisions for padlocking on each draw-pull catch
Embossed mounting holes on back of enclosure
Gasketing along top of door
ANSI 61 gray polyester-powder coating inside and out over galvanized steel
Optional steel panels with white finish
Fans, heaters, louvers, and windows available
UL File #E27567
CSA File #LL42184, RoHs
One-year warranty

more information & related documents

Series Description

Hoffman A-HCLO Series NEMA 3R hinge-cover lift-off enclosures can be used to house controls and instruments. Each NEMA enclosure provides protection in outdoor installations against rain, sleet, and snow. The NEMA 3R boxes also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.

Kele Description

NEMA 3R 8X6X4 ENCLOSURE

Manufacturer

Hoffman Enclosures
