A16R166HCLOP | Hoffman Enclosures | Enclosures

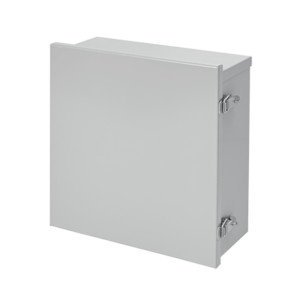

16 x 16 x 6Hoffman NEMA 3R Hinge-Cover Enclosure with Perf Panel
Brand:Hoffman Enclosures
MPN:A16R166HCLOP
SKU:A-16R166HCLOP
List Price:
$665.00
Today's Price:
$345.80
product specifications
Material
Steel
Type
Enclosure/Drip Shield/Perf
Width
16 in
Height
16 in
Mounting Type
Hinged
NEMA Rating
NEMA 3R
Depth
6 in
product series features
- Drip-shield top and seam-free sides, front, and back
- Galvanized steel lift-off hinges with stainless steel pins
- Cover fastened securely with draw-pull catches
- Provisions for padlocking on each draw-pull catch
- Embossed mounting holes on back of enclosure
- Gasketing along top of door
- ANSI 61 gray polyester-powder coating inside and out over galvanized steel
- Optional steel panels with white finish
- Fans, heaters, louvers, and windows available
- UL File #E27567
- CSA File #LL42184, RoHs
- One-year warranty
more information & related documents
Series Description
Hoffman A-HCLO Series NEMA 3R hinge-cover lift-off enclosures can be used to house controls and instruments. Each NEMA enclosure provides protection in outdoor installations against rain, sleet, and snow. The NEMA 3R boxes also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.
Kele Description
NEMA 3R 16X16X6 W/PERF PANEL
Manufacturer
Hoffman Enclosures
