* product series image displayed

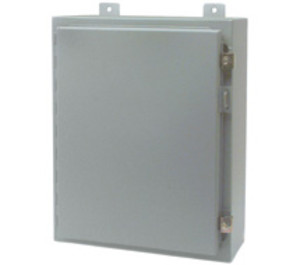

A362410LP | Hoffman Enclosures | Enclosures

WALL-MOUNT TYPE 12/13 ENCLOSURE

Brand:Hoffman Enclosures

MPN:A362410LP

SKU:A362410LP

List Price:

$4,698.00

Today's Price:

$2,442.96

catalog page

product specifications

Type

Enclosure Only

Material

Steel

Enclosure Width

24 in

Enclosure Height

36 in

Enclosure Depth

10 in

Enclosure Rating

NEMA 4X

Mount

Wall

product series features

16 gauge steel bodies and 14 gauge doors on sizes up through 24 in. x 24 in.; larger sizes all 14 gauge
Seams continuously welded and ground smooth, no holes or knockouts
External mounting feet
Quick and easy operation of door clamps
Door removable by pulling heavy gauge continuous-hinge pin
Hasp and staple for padlocking
Oil-resistant gasket attached with adhesive and steel retaining strips
Collar studs for mounting optional panels
White inside with ANSI 61 gray outside finish over phosphatized surfaces
Optional steel panels with white finish
UL File #E61997
CSA File #LR42186, RoHs
One year warranty

more information & related documents

Series Description

The Hoffman A-LP Series NEMA 12 single-door, wall-mounted enclosures house electrical and pneumatic controls, instruments, and components. These enclosures provide protection from dust, dirt, oil, and water.

Kele Description

WALL-MOUNT TYPE 12/13 ENCLOSURE

Manufacturer

Hoffman Enclosures
