A-242408LP-P
* product series image displayed

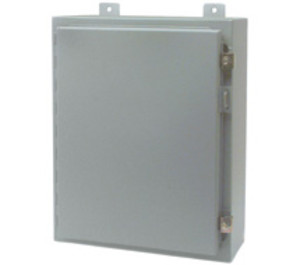

A-242408LP-P | Hoffman Enclosures | Enclosures

NEMA 12 24X24X08 ENCL W/PERF

Brand:Hoffman Enclosures

MPN:A-242408LP-P

SKU:A-242408LP-P

List Price:

$2,153.83

Today's Price:

$1,119.99



Availability: Usually Ships in Less Than 5 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Material

Steel

Type

Enclosure w/Clamps/Panel

Width

24 in

Height

24 in

Mounting Type

Hinged

NEMA Rating

NEMA 12

Depth

8 in

product series features

  • 16 gauge steel bodies and 14 gauge doors on sizes up through 24 in. x 24 in.; larger sizes all 14 gauge
  • Seams continuously welded and ground smooth, no holes or knockouts
  • External mounting feet
  • Quick and easy operation of door clamps
  • Door removable by pulling heavy gauge continuous-hinge pin
  • Hasp and staple for padlocking
  • Oil-resistant gasket attached with adhesive and steel retaining strips
  • Collar studs for mounting optional panels
  • White inside with ANSI 61 gray outside finish over phosphatized surfaces
  • Optional steel panels with white finish
  • UL File #E61997
  • CSA File #LR42186, RoHs
  • One year warranty

more information & related documents

Series Description

The Hoffman A-LP Series NEMA 12 single-door, wall-mounted enclosures house electrical and pneumatic controls, instruments, and components. These enclosures provide protection from dust, dirt, oil, and water.

Kele Description

NEMA 12 24X24X08 ENCL W/PERF

Manufacturer

Hoffman Enclosures
