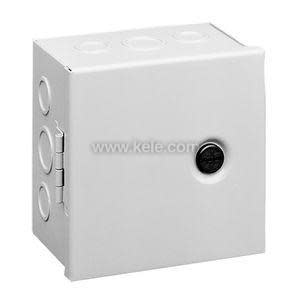

Square white junction box with circular knockout plugs on sides and a black locking knob on the door.

AHE10X8X4 | Hoffman Enclosures | Enclosures

Pull Box, Hinged Cover, Bulletin A90HC (Hinge cover cut-out box), Size/Dims: 10.00x8.00x4.00, Material/Finish: Steel/Gray

Brand:Hoffman Enclosures

MPN:AHE10X8X4

SKU:AHE10X8X4

List Price:

$99.93

Today's Price:

$51.96

product datasheet

product specifications

Type

Enclosure Only

Enclosure Width

8 in

Enclosure Height

10 in

Enclosure Depth

4 in

Enclosure Rating

NEMA 1

Mount

Hinged

product series features

16-gauge steel construction meets NEMA 1
Removable doors with butt hinges
Door hinge on left or right side
Mounting holes on back of enclosure
Easy operation of flush latch with a screwdriver or coin
Various sizes of easily removable knockouts on all sides
ANSI 61 gray polyester-powder finish inside and out over phosphatized surfaces
Available with optional perf panel
UL listed, File #E27525
CSA certified, File #LL42184
One-year warranty

more information & related documents

Series Description

The Hoffman AHE Series NEMA 1 Hinge Cover Boxes serve as surface-mounted junction boxes or switch boxes. With the addition of a field-installed perforated subpanel, they can also house controls and instruments in areas that do not require oil- and dust-tight ratings

Kele Description

NEMA 1 10X8X4 HINGED ENCLOSURE

Manufacturer

Hoffman Enclosures
