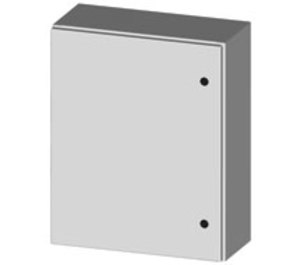

* product series image displayed

SCE-48EL3612LPPL | Saginaw Control & Engineering | Enclosures

NEMA 4/12/13 48X36X12 ENVIROLINE LPPL ENCL

Brand:Saginaw Control & Engineering

MPN:SCE-48EL3612LPPL

SKU:SCE-48EL3612LPPL

List Price:

$2,790.00

Today's Price:

$1,450.80

catalog page

Lead time of 4 days. Chat with Kele experts now

product specifications

Type

Enclosure Only

Enclosure Width

36 in

Enclosure Height

48 in

Enclosure Depth

12 in

Enclosure Rating

NEMA 4,NEMA 12,NEMA 13

Mount

Hinged

product series features

Minimum width body flange for maximum door opening
Hidden hinges for clean aesthetic appearance
Door removable
Seamless foam-in-place one-piece gasket for oil-tight and dust-tight seal
Panel-mounting studs for optional subpanels and accessories
Removable data pocket
UL listed, File #E69392
CSA certified
Rated NEMA 4, 12, and 13
ANSI 61 gray polyester powder coating inside and out with white panels

more information & related documents

Series Description

The Saginaw Eniroline Series features NEMA 4, NEMA 12, and NEMA 13 rated enclosures and panels. The EL Series electrical boxes are attractive, single-door wall-mounted enclosures designed to safely house electrical and pneumatic components. Indispensable for building automation systems, BAS, and HVAC applications, Saginaw enclosures are manufactured from 14 gauge steel. Seams for each enclosure are continuously welded and ground smooth, so there are no holes and knock-outs. These NEMA enclosures provide protection from dust, dirt, oil, and water.

Kele Description

NEMA 4/12/13 48X36X12 ENVIROLINE LPPL ENCL

Manufacturer

Saginaw Control & Engineering
