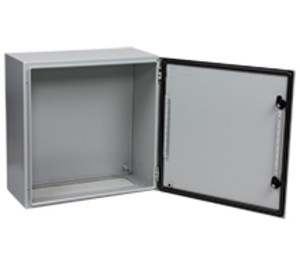

RET4-393210LG-P | Kele | Enclosures
ENCLOSURE, NEMA 4, 39 IN X 32 IN X 10 IN WITH PERFORATED SUBPANEL, LIGHT GREY
Brand:Kele
MPN:RET4-393210LG-P
SKU:RET4-393210LG-P
List Price:
$1,709.00
Today's Price:
$888.68
Log in for customized pricingproduct specifications
Type
Enclosure w/Perf
Enclosure Width
32 in
Enclosure Height
39 in
Enclosure Depth
10 in
Enclosure Rating
NEMA 4
Mount
Hinged
product series specifications
Construction: 18 AWG Steel
Corners: Welded
Paint: Anti-scratch epoxy-polyester powder
Color: RAL 7035 light grey
Door: Hidden hinge & removable with pins
Orientation: Left or Right, field reversible
Lock: Screwdriver slot, (Key lock optional)
Gasket: Polyurethane surrounding the door
Panel Studs: 4-(Panel back) studs with nuts, 5/16" x 1/2" long
Sub-Panel: Optional perforated panel
Conduit Entry: 1 removable entry plate with gasket
Drill per size required:
Ground Lug: 3-(Panel & Door) studs with nuts, 1/4" x 1/2" long
Wall Mounting: Four 3/8" (10mm) holes (1/inside corner)
Protection: NEMA (1, 2, 3, 3R, 4, 5, 12, 13), IP66
Interior: rain, dust, dirt, oil, & hose directed water
Approvals: UL (#E189035), CE, IEC 62208, RoHS
Warranty: 1 year
product series features
- Economical Type 4, multiple NEMA ratings
- Hidden hinged door, opening to 120°
- Field-removable and reversible door
- Welded 18 AWG steel construction
- Anti-scratch epoxy-polyester paint
- Perforated sub-panel (optional)
more information & related documents
Series Description
The Kele RET4 Series enclosure-formerly the ONEBOX- is for field mounting controls and provides a safe space to mount electrical instruments, controllers, and power supplies with interconnecting wiring. These enclosures offer protection from windblown dust, rain, ice, and hose-directed water. The NEMA rating encompasses NEMA ratings at very competitive prices. The epoxy finish is scratch resistant and comes with a detachable plate for easy conduit entry and drilling. The door is both removable and reversible with invisible hinges and allows 120° opening. Interior studs allow an optional perf panel back-plate that lowers labor cost through easy equipment alignment and mounting, offering a neat, aligned, finished look. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
ENCLOSURE, NEMA 4, 39 X 32 X 10 + PERF, LIGHT GREY
Manufacturer
Kele
