KBP-161608 | Kele | Enclosures
16 X 16 X 08 NEMA 4 100VA ASSEMBLED PANEL
Brand:Kele
MPN:KBP-161608
SKU:KBP-161608
List Price:
$723.00
Today's Price:
$375.96
Log in for customized pricingproduct specifications
Color
RAL 7035 Grey
Material
16 AWG Steel
Supply Voltage
120 VAC to 24 VAC, 100 VA transformer with circuit breaker
Application
BAS
product series specifications
Construction: 16 AWG Steel
Paint: Anti-Scratch Epoxy-Polyester Resin
Door: Hidden hinge and removable w/ pins
Panel Studs: 4 (panel back) studs w/ nuts, 5/16” x 1/2” long
Separate Circuit Breaker: Hydraulic-Magnetic, 1P, medium delay, 10A
Wall Mounting: Four 3/8” (10mm) holes
Interior: Rain, Dust, Dirt, Oil, and Hose directed water
product series features
- NEMA 4 Rating
- Hidden Hinged Door
- Field Removable and Reversable Door
- Pre-Wired Circuit Breaker
- Additional Din-Rail for adding components
- Preforated Back-Panel
- Convenience Power Outlet
- Maximized Space for additional components
more information & related documents
Series Description

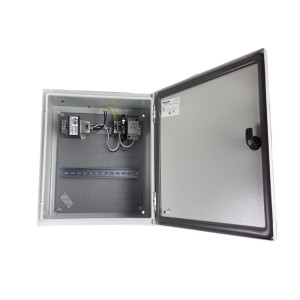

The KELE Base Panel Enclosure (KBP-Series) is designed for fast turnaround on a control panel job, saving time and labor. Each panel is set up with transformer(s), pre-wired circuit breaker, terminal blocks, wire duct, convenience outlet, additional DIN rail, and a perforated back panel for easy mounting of customer parts. The KBP Series is ideal for field mounting controls and provides a safe space to mount electrical instruments, controllers, and other devices. These are NEMA 4 enclosures which offer protection from windblown dust, rain, Ice, and hose directed water. The KBP Series comes with a door that is both removable and reversible with invisible hinges and allows 120⁰ opening. Interior studs allow an optional perf panel back-plate that lowers labor cost through easy equipment alignment and mounting offering a neat, aligned finished look.
Kele Description
16 X 16 X 08 NEMA 4 100VA ASSEMBLED PANEL
Manufacturer
Kele
Related Documents
KBP Data Sheet Rev 1.2
