DSMGFTKIT | Stahlin Enclosures | Enclosures
MOUNTING FOOT KIT, DIAMONDSHIELD
Brand:Stahlin Enclosures
MPN:DSMGFTKIT
SKU:DSMGFTKIT
List Price:
$66.00
Today's Price:
$34.32
Log in for customized pricingproduct specifications
Type
Kits
Material
Non-Metal
Mount
Hinged
product series specifications
Material: SolarGuard® - Hot compression molded fiberglass reinforced polyester (thermoset)
Gasket: Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
Stainless Steel Hardware: 300 Series stainless used on all hardware
Mounting Bosses: Panel mounting capability for fixed rear panel
Metal Inserts: All bosses utilize threaded brass inserts accepting 10-32 screws
Soft Edge Design: Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris
Color: Available standard glacier grey (PMS 428C)
Certifications:
NEMA 250, UL Listed UL50, UL50e, UL508A:File E64358, Type 1, 3, 3S, 4X, 12, 13
CSA Std C22.2: File LR069014, Type 1, 3, 3S, 4X, 12, 13
IEC60529: IP66
Temperature Range: (-76°F to +274°F) (-60°C to +134°C)
Flammability Rating: UL94-SV
Impact Rating: IK10
Self Extinguishing: Non-Halogenated, Non-flame propagating
Chemical Resistance: Full chemical resistance charts listed in appendix
NFPA No. 101 Flame Spread: Class A (1)
Outdoor Exposure UL746C: (f1) Rated
product series features
- Available in 3 cover options: Opaque cover
- - Flush bonded window, Clear polycarbonate cover, Panel mounting option in cover for use as an operator interface
- Solid construction in a lightweight design
more information & related documents

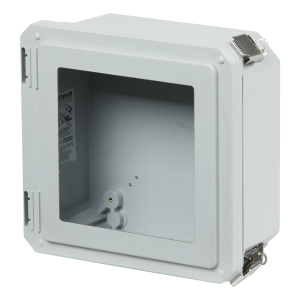

Series Description
The Diamond Shield® Series was developed for design flexibility and pleasing aesthetics. Unique internal panel management capabilities provides the end user with only the features they need for their application, yet able to use every cubic inch of valuable internal enclosure.
Kele Description
MOUNTING FOOT KIT, DIAMONDSHIELD
Manufacturer
Stahlin Enclosures
Diamond Shield - DS-HPL
