ECH-F1-24-15-P-COM-110 | Puro | Disinfection Solutions

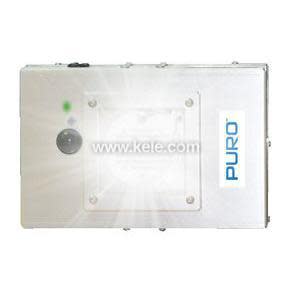

Helo Single Ultraviolet (UV) Lamp Fixture, 12X24 Flange, Drop Ceiling, 15' Line Cord, BACnet, 110 VAC
Brand:Puro
MPN:ECH-F1-24-15-P-COM-110
SKU:ECH-F1-24-15-P-COM-110
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct series specifications
†
†Proprietary Pulsed Xenon Lamp
Illumination
Light Source
:- Flash Interval:
- †1 UV Flash every 6 seconds
- Wavelengths:
†UV-C (200-280nm)†
†UV-B (280-320nm)†
†UV-A (320-400nm)†
- Range:
- †Up to 10' x 10‚Äô typical (100 sq feet)
- UV Bulb Rated:
- †> 2 Million UV Flashes 2
†
†110V AC
Electrical System
Input Voltage
:- Max Current:
- †3.5 Amps
- Average Power:
- †60W during operation
- Power Connection:
- †3-prong grounded plug
†
†F1 2.6 lbs†
†F1-12 4lbs†
†F1-24 6.5 lbs†
Physical†
Weight†
:- Housing/Finish:
- †Brushed Aluminum
- Optics:
- †Single patented UV Light Engine with transmissive UV lens and pulsed Xenon UV lamp
- Beam Angle:
- †170 degrees
†
†41oF to 104oF
Environment†
Ambient Operating†Temperature†
:- Ambient Operating†Humidity:
- †<80%RH non-condensing
†
†TUV Certified tested to UL 61010-1:2012
Certifications and Qualifications
Safety
:- FCC:
- †Compliant with Part 15 Class A
- RoHS:
- †Compliant
- FDA:
- †Materials are cleared for use in food and medical areas
- EPA:
- †Registered
- Warranty:
- †1 year
- Made in the USA:
- †Yes
product series features
- Ceiling or wall-mounted installation to disinfect a whole room without staff requirements to relocate it
- Broad Spectrum UV-C, UV-B and UV-A light to kill bacteria and viruses
- Programmed manually or integrated into building automation systems through BACnet
- Single UV Light Engine with pulsed Xenon lamp for up to a 10 x 10 ft coverage area
more information & related documents
Series Description
The Helo F1 Series is a UV disinfecting fixture with one UV light engine. It can be installed in configurations for drop-in ceilings, recessed hard ceilings, wall/surface mounts, and portable/tabletop use. All variants operate identically and have a 10' x 10' coverage area. This fixture can be integrated with a building automation system (BAS) through BACnet or manually commissioned. The Helo F2 Series is a UV disinfecting fixture with two UV light engines. It can be installed in ceilings, suspended as a pendant, or wall mounted. It has a 12' x 12' coverage area. Like the Helo F1, this fixture can be integrated with a BAS through BACnet or manually commissioned.
Kele Description
HELO SINGLE UV LAMP FIXTURE, 12X24 FLANGE DROP CEILING, 15' LINE CORD, BACNET, 110 VAC
Manufacturer
Puro
Related Documents
Puro Helo F1 Spec Sheet
