TUV-BTXL-218D | Fresh-Aire UV | Disinfection Solutions

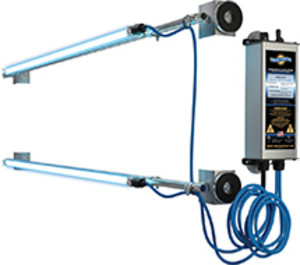

BLUE-TUBE XL 120-277 VAC, 18" DUAL LAMP, HIGH OUTPUT

Brand:Fresh-Aire UV

MPN:TUV-BTXL-218D

SKU:TUV-BTXL-218D

List Price:

$3,480.00

Today's Price:

$1,809.60

Availability: Lead time > 15 days. See alternatives below or chat with Sales.

product specifications

Mounting

Various Options

Type

UV Light System

Size

18 in

Voltage

120-277 VAC

Number of Lamps

product series specifications

†254 nm germicidal UV-C, quartz hot filament

†Lamp: 15‚ÄùL x 0.74‚Äù Dia.;†ER Power Supply: 4.1‚ÄùW x 1.7‚Äù H x 1.8‚ÄùD;†ST Power Supply: 5.0‚ÄùW x 1.1‚Äù H x 2.4‚ÄùD††

†ER models†

†18-32 VAC, 60 Hz;†0.68 Amps, 16 VA†

†ST models†

†120-277 VAC, 50/60 Hz;†0.51 Amps/120V Thru 0.22 Amps/277V†

†‚Ä¢Power Supply,†‚Ä¢6‚Äô Lamp Cable,†‚Ä¢UV Lamp,†‚Ä¢Magnetic†'Z‚Äô Bracket,†‚Ä¢Mounting Hardware,†‚Ä¢Panel Indicator,†‚Ä¢Installation Sticker†

†Lifetime for all parts except lamp

†Made in the USA

product series features

Easy to install
Fits coils from 18 in. x 32 in. to 72 in. x 72 in.
2 year guaranteed lamp life
Includes everything needed for most installations
Scalable design for multi-lamp configurations
Lifetime warranty on all parts except lamp(s)
Water-resistant heavy-duty power supply
Optional door interlock switch (TUVC-INTLCK)

more information & related documents

Series Description

The Fresh-Aire UV BLUE-TUBE XLTM Series is designed for installation in commercial air handling units and rooftop package units for the purpose of surface or airborne disinfection using ultraviolet germicidal irradiation. For maximum installation flexibility and cost-effectiveness, the UV lamps are mounted onto a framework of standard 0.5 in. EMT tubing (included). The remotely mounted, weather-resistant power supply can withstand the wet environment found inside air handlers or the exposed conditions of outdoor packaged air-conditioning systems.  The number and placement of lamps is determined by several factors, including coil dimensions and condition or if airborne disinfection is desired. BLUE-TUBE XLTM has everything needed for complete installation in most AHU and RTU equipment.

Kele Description

BLUE-TUBE XL 120-277 VAC, 18" DUAL LAMP, HIGH OUTPUT

Manufacturer

Fresh-Aire UV
