V243-34-EP4.5 | Spartan Peripheral Devices | Control Valves

3/4, 2W, CV=4.5, SUTO, FNPT

Brand:Spartan Peripheral Devices

MPN:V243-34-EP4.5

SKU:V243-34-EP4.5

List Price:

$104.55

Today's Price:

$54.37



Availability: Usually Ships in Less Than 9 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Connection

NPT

Cv

4.5 CV

Type

Valve

Pattern

2-Way

Trim Material

Stainless Steel

Size

3/4 in

product series specifications

    Size:
  • 1/2", 3/4", 1"
    Cv Range:
  • 0.15 to 9.0
    Connections:
  • NPT, sweat, union
    Stroke:
  • 2-way valves: 0.16‚Ä= (4.0 mm)
    :
  • 3-way valves: 0.11‚Ä= (2.8 mm)
    Life Expectancy:
  • 1.5 million cycles, 3 million full strokes
    Body Pattern:
  • 2-way, 3-way diverting (mixing OK if pressure drop <5 psid)
    Leakage Class:
  • ANSI Class III (0.1%)
    Body Rating:
  • ANSI 250 (400 psi @ 150‚Ñâ, 250 psi @ 250‚Ñâ), PN16
    Maximum Closeoff Pressure:
  • OT-11, -21, -51: 30 psid (207 kPa); all others 45 psid (311 kPa); EB cartridges 100 psid (689 kPa)
    Materials Of Construction:
  • Low zinc bronze valve body alloy C84400, stainless steel stem and spring, integral bronze seat, EPDM/brass disc/plunger, double EPDM o-rings
    Media Compatibility:
  • Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) steam (1‚Ä= valve not rated for steam)
    Media Temperature Range:
  • 250‚Ñâ (120‚ÑÉ) maximum media temperature
    Supply Voltage:
  • ME-16, -17: 24 VAC/DC; 50/60 Hz, 230 VAC; 50/60 Hz
    ME-16, -17: 24 VAC +20%, -10% @ 2 VA, 50/60 Hz, 24 VDC +20%, -10% @ 85 mA:
    ME-4430, -4530: 24 VAC 10% @ 8 VA, 50/60 Hz:
    ME-4431, -4531: 110 VAC, 50/60 Hz:
    ME-46, -47, -48, -49: 24 VAC +10%, -5% @ 9 VA, 50/60 Hz:
    ME-41, -42, -43: 24 VAC +10%, -5% @ 1 VA, 50/60 Hz:
    Signal Input:
  • OT-11, -21, -51: thermostatic, modulating, temperature up = stem down
    MP-5100: pneumatic, SR, 3-6 psi modulating or 2-position:
    MP-5300: pneumatic, SR, 7-11 psi modulating or 2-position:
    ME-16, -17: 2-position, SR, two-wire, wax technology, can be pulsed:
    ME-44, -45: 2-position, SR two-wire:
    ME-4640: floating, SR:
    ME-4740: PWM, SR, 0.2 to 5 second pulse, 5 seconds full stroke:
    ME-48, -49: proportional, SR, 2-10/10-2 VDC or 4-20 mA:
    ME-4140: floating, NSR, triac or low energy gold contacts:
    ME-4240: PWM, NSR:
    ME-4340: proportional, NSR, 2-10 VDC:
    Input Impedance:
  • ME-46, -47: 2 k‚Ѷ
    ME-48, -49: 200 kΩ:
    ME-41, -42: 2 kΩ:
    ME-4340: 200 kΩ:
    Wiring:
  • ME-16, -17: 40‚Ä= (100 cm) leads
    ME-44, -45: 4‚Ä= (10 cm) leads:
    ME-46, -47, -48, -49: 32‚Ä= plenum-rated cable:
    ME-41, -42, -43: 32‚Ä= plenum-rated cable:
    Action:
  • Cartridges spring return valve stem up; valve body designs are either stem-up-to-open (SUTO) or stem-up-to-close (SUTC); spring return actuators available in fail-stem-up or fail-stem-down
    Actuator Compatibility:
  • All actuators: compatible with all valve bodies (exception: V222 valves use MP actuators only)
    Actuator Mounting:
  • Knurled mounting ring, hand tighten
    Air Connections:
  • Brass barbs for 5/32‚Ä= or 1/4‚Ä= OD flexible tubing (MP actuators, maximum 60 psig)
    Dimensions:
  • OT-11, -21, -51: 3.4"H x 2.4" Dia. (8.6 x 6.0 cm)
    MP-51, -53: 2.5"H x 3.1" Dia. (6.4 x 7.8 cm):
    ME-16, -17: 3.1"H x 1.8"W x 1.8"D (7.9 x 4.6 x 4.6 cm):
    ME-44, -45: 3.5"H x 2.8"W x 2.5"D (8.9 x 7.1 x 6.3 cm):
    ME-46, -47, -48, -49: 3.5"H x 3.0"W x 3.5"D (8.9 x 7.6 x 8.9 cm):
    ME-41, -42, -43: 3.1"H x 2.5"W x 3.3"D (7.9 x 6.4 x 8.5 cm):
    Drive Time:
  • OT-11, -21, -51: variable
    MP-51, -53: variable:
    ME-16, -17: <5 minutes:
    ME-44, -45: 10 seconds;:
    ME-46, -47, -48, -49: 60 seconds drive, 25 seconds spring:
    ME-41, -42: 90 seconds:
    ME-4340: 60 seconds:
    Setpoint Range:
  • OT-11, -21, -51: 40° to 85‚Ñâ (4° to 29‚ÑÉ)
    Feedback:
  • ME-46, -47, -48, -49: 1-5 VDC, 100 k‚Ѷ impedance
    ME-41, -42, -43: 1-5 VDC, 33 kΩ impedance:
    Manual Override:
  • ME-16, -17 actuators only
    Operating Temperature:
  • OT-11, -21, -51: 40° to 85‚Ñâ (4° to 29‚ÑÉ)
    MP-51, -53: 41° to 122‚Ñâ (5° to 50‚ÑÉ):
    ME-16, -17: 46° to 122‚Ñâ (8° to 50‚ÑÉ):
    ME-44, -45: 41° to 122‚Ñâ (5° to 50‚ÑÉ):
    ME-46, -47, -48, -49: 32° to 122‚Ñâ (0° to 50‚ÑÉ):
    ME-41, -42, -43: 40° to 122‚Ñâ (5° to 50‚ÑÉ):
    Enclosure Rating:
  • NEMA 1 (IP20)
    Weight:
  • V222-12, -34: 1.5 lb (0.68 Kg)
    V241-12: 0.60 lb (0.27 Kg):
    V241-34: 1.0 lb (0.45 Kg):
    V243-12: 0.55 lb (0.25 Kg):
    V243-34: 0.75 lb (0.34 Kg):
    V243-10: 2.1 lb (0.95 Kg):
    V245-12: 0.50 lb (0.23 Kg):
    V245-34: 0.70 lb (0.32 Kg):
    V320-12: 0.95 lb (0.43 Kg):
    V320-34: 1.0 lb (0.45 Kg):
    V345-10: 2.1 lb (0.95 Kg):
    V325-12: 0.60 lb (0.27 Kg):
    V325-34: 0.80 lb (0.35 Kg):
    OT-1100: 0.30 lb (0.14 Kg):
    MP-51, -53: .40 lb (.18 kg):
    ME-16, -17: 0.30 lb (0.14 Kg):
    ME-44, -45: 0.75 lb (0.34 Kg):
    ME-46, -47, -48, -49: 0.95 lb (0.43 Kg):
    ME-41, -42: 0.55 lb (0.25 Kg):
    Approvals:
  • CE
    Warranty:
  • Valves: 5 years;
    Actuators: 2 years:

product series features

  • Valves are fully interchangeable with all actuators
  • Complete selection of NPT/Sweat/Union fittings
  • Electric, thermostatic, thermo-electric and pneumatic actuators
  • Interchangeable cartridges for multiple Cvs
  • Full service from the top of the valve body

more information & related documents

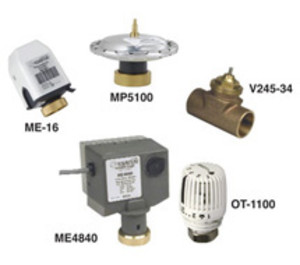

Series Description

Spartan V200 two-way and V300 three-way zone valve products offer a wide variety of connection sizes and types. This wide selection of valves and actuators work with electric, thermostatic, thermo-electric, and pneumatic applications. The 2-way zone valve and 3-way zone valve products feature interchangeable bodies compatible with all the actuators. Complete flexibility and easy selection make these the zone valves of choice for Building Automation Systems, BAS, and HVAC applications.
