V243-12-EP2.5 | Spartan Peripheral Devices | Control Valves
1/2 IN, 2W, CV=2.5, SUTO, FNPT
Brand:Spartan Peripheral Devices
MPN:V243-12-EP2.5
SKU:V243-12-EP2.5
List Price:
$80.99
Today's Price:
$42.12
product specifications
Connection
NPT
Cv
2.5 CV
Type
Valve
Pattern
2-Way
Size
1/2 in
product series specifications
- Size:
- 1/2", 3/4", 1"
- Cv Range:
- 0.15 to 9.0
- Connections:
- NPT, sweat, union
- Stroke:
- 2-way valves: 0.16‚Ä= (4.0 mm)
- :
- 3-way valves: 0.11‚Ä= (2.8 mm)
- Life Expectancy:
- 1.5 million cycles, 3 million full strokes
- Body Pattern:
- 2-way, 3-way diverting (mixing OK if pressure drop <5 psid)
- Leakage Class:
- ANSI Class III (0.1%)
- Body Rating:
- ANSI 250 (400 psi @ 150‚Ñâ, 250 psi @ 250‚Ñâ), PN16
- Maximum Closeoff Pressure:
- OT-11, -21, -51: 30 psid (207 kPa); all others 45 psid (311 kPa); EB cartridges 100 psid (689 kPa)
- Materials Of Construction:
- Low zinc bronze valve body alloy C84400, stainless steel stem and spring, integral bronze seat, EPDM/brass disc/plunger, double EPDM o-rings
- Media Compatibility:
- Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) steam (1‚Ä= valve not rated for steam)
- Media Temperature Range:
- 250‚Ñâ (120‚ÑÉ) maximum media temperature
- Supply Voltage:
- ME-16, -17: 24 VAC/DC; 50/60 Hz, 230 VAC; 50/60 Hz
- ME-16, -17: 24 VAC +20%, -10% @ 2 VA, 50/60 Hz, 24 VDC +20%, -10% @ 85 mA:
- ME-4430, -4530: 24 VAC 10% @ 8 VA, 50/60 Hz:
- ME-4431, -4531: 110 VAC, 50/60 Hz:
- ME-46, -47, -48, -49: 24 VAC +10%, -5% @ 9 VA, 50/60 Hz:
- ME-41, -42, -43: 24 VAC +10%, -5% @ 1 VA, 50/60 Hz:
- Signal Input:
- OT-11, -21, -51: thermostatic, modulating, temperature up = stem down
- MP-5100: pneumatic, SR, 3-6 psi modulating or 2-position:
- MP-5300: pneumatic, SR, 7-11 psi modulating or 2-position:
- ME-16, -17: 2-position, SR, two-wire, wax technology, can be pulsed:
- ME-44, -45: 2-position, SR two-wire:
- ME-4640: floating, SR:
- ME-4740: PWM, SR, 0.2 to 5 second pulse, 5 seconds full stroke:
- ME-48, -49: proportional, SR, 2-10/10-2 VDC or 4-20 mA:
- ME-4140: floating, NSR, triac or low energy gold contacts:
- ME-4240: PWM, NSR:
- ME-4340: proportional, NSR, 2-10 VDC:
- Input Impedance:
- ME-46, -47: 2 kΩ
- ME-48, -49: 200 kΩ:
- ME-41, -42: 2 kΩ:
- ME-4340: 200 kΩ:
- Wiring:
- ME-16, -17: 40‚Ä= (100 cm) leads
- ME-44, -45: 4‚Ä= (10 cm) leads:
- ME-46, -47, -48, -49: 32‚Ä= plenum-rated cable:
- ME-41, -42, -43: 32‚Ä= plenum-rated cable:
- Action:
- Cartridges spring return valve stem up; valve body designs are either stem-up-to-open (SUTO) or stem-up-to-close (SUTC); spring return actuators available in fail-stem-up or fail-stem-down
- Actuator Compatibility:
- All actuators: compatible with all valve bodies (exception: V222 valves use MP actuators only)
- Actuator Mounting:
- Knurled mounting ring, hand tighten
- Air Connections:
- Brass barbs for 5/32‚Ä= or 1/4‚Ä= OD flexible tubing (MP actuators, maximum 60 psig)
- Dimensions:
- OT-11, -21, -51: 3.4"H x 2.4" Dia. (8.6 x 6.0 cm)
- MP-51, -53: 2.5"H x 3.1" Dia. (6.4 x 7.8 cm):
- ME-16, -17: 3.1"H x 1.8"W x 1.8"D (7.9 x 4.6 x 4.6 cm):
- ME-44, -45: 3.5"H x 2.8"W x 2.5"D (8.9 x 7.1 x 6.3 cm):
- ME-46, -47, -48, -49: 3.5"H x 3.0"W x 3.5"D (8.9 x 7.6 x 8.9 cm):
- ME-41, -42, -43: 3.1"H x 2.5"W x 3.3"D (7.9 x 6.4 x 8.5 cm):
- Drive Time:
- OT-11, -21, -51: variable
- MP-51, -53: variable:
- ME-16, -17: <5 minutes:
- ME-44, -45: 10 seconds;:
- ME-46, -47, -48, -49: 60 seconds drive, 25 seconds spring:
- ME-41, -42: 90 seconds:
- ME-4340: 60 seconds:
- Setpoint Range:
- OT-11, -21, -51: 40° to 85‚Ñâ (4° to 29‚ÑÉ)
- Feedback:
- ME-46, -47, -48, -49: 1-5 VDC, 100 kΩ impedance
- ME-41, -42, -43: 1-5 VDC, 33 kΩ impedance:
- Manual Override:
- ME-16, -17 actuators only
- Operating Temperature:
- OT-11, -21, -51: 40° to 85‚Ñâ (4° to 29‚ÑÉ)
- MP-51, -53: 41° to 122‚Ñâ (5° to 50‚ÑÉ):
- ME-16, -17: 46° to 122‚Ñâ (8° to 50‚ÑÉ):
- ME-44, -45: 41° to 122‚Ñâ (5° to 50‚ÑÉ):
- ME-46, -47, -48, -49: 32° to 122‚Ñâ (0° to 50‚ÑÉ):
- ME-41, -42, -43: 40° to 122‚Ñâ (5° to 50‚ÑÉ):
- Enclosure Rating:
- NEMA 1 (IP20)
- Weight:
- V222-12, -34: 1.5 lb (0.68 Kg)
- V241-12: 0.60 lb (0.27 Kg):
- V241-34: 1.0 lb (0.45 Kg):
- V243-12: 0.55 lb (0.25 Kg):
- V243-34: 0.75 lb (0.34 Kg):
- V243-10: 2.1 lb (0.95 Kg):
- V245-12: 0.50 lb (0.23 Kg):
- V245-34: 0.70 lb (0.32 Kg):
- V320-12: 0.95 lb (0.43 Kg):
- V320-34: 1.0 lb (0.45 Kg):
- V345-10: 2.1 lb (0.95 Kg):
- V325-12: 0.60 lb (0.27 Kg):
- V325-34: 0.80 lb (0.35 Kg):
- OT-1100: 0.30 lb (0.14 Kg):
- MP-51, -53: .40 lb (.18 kg):
- ME-16, -17: 0.30 lb (0.14 Kg):
- ME-44, -45: 0.75 lb (0.34 Kg):
- ME-46, -47, -48, -49: 0.95 lb (0.43 Kg):
- ME-41, -42: 0.55 lb (0.25 Kg):
- Approvals:
- CE
- Warranty:
- Valves: 5 years;
- Actuators: 2 years:
product series features
- Valves are fully interchangeable with all actuators
- Complete selection of NPT/Sweat/Union fittings

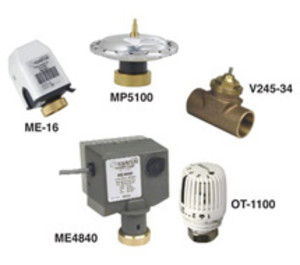

- Electric, thermostatic, thermo-electric and pneumatic actuators
- Interchangeable cartridges for multiple Cvs
- Full service from the top of the valve body
more information & related documents
Series Description
Spartan V200 two-way and V300 three-way zone valve products offer a wide variety of connection sizes and types. This wide selection of valves and actuators work with electric, thermostatic, thermo-electric, and pneumatic applications. The 2-way zone valve and 3-way zone valve products feature interchangeable bodies compatible with all the actuators. Complete flexibility and easy selection make these the zone valves of choice for Building Automation Systems, BAS, and HVAC applications.
Kele Description
1/2 IN, 2W, CV=2.5, SUTO, FNPT
Manufacturer
Spartan Peripheral Devices
