V222-EC3.0

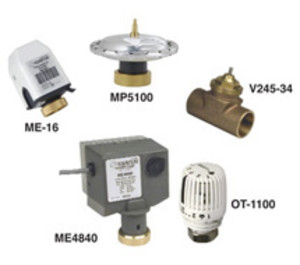

* product family image displayed

V222-EC3.0 | Spartan Peripheral Devices | Control Valves

1/2 IN, 2W, CV=3.0, SUTC, BOD+CART

Manufacturer:Spartan Peripheral Devices

MPN:V222-EC3.0

SKU:V222-EC3.0

List Price:

158.00

Today's Price:

88.48



USD
Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Size

1/2", 3/4", 1"

Cv Range

0.15 to 9.0

Connections

NPT, sweat, union

Stroke

2-way valves: 0.16″ (4.0 mm)

3-way valves: 0.11″ (2.8 mm)

Life Expectancy

1.5 million cycles, 3 million full strokes

Body Pattern

2-way, 3-way diverting (mixing OK if pressure drop <5 psid)

Leakage Class

ANSI Class III (0.1%)

Body Rating

ANSI 250 (400 psi @ 150℉, 250 psi @ 250℉), PN16

Maximum Closeoff Pressure

OT-11, -21, -51: 30 psid (207 kPa); all others 45 psid (311 kPa); EB cartridges 100 psid (689 kPa)

Materials Of Construction

Low zinc bronze valve body alloy C84400, stainless steel stem and spring, integral bronze seat, EPDM/brass disc/plunger, double EPDM o-rings

Media Compatibility

Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) steam (1″ valve not rated for steam)

Media Temperature Range

250℉ (120℃) maximum media temperature

Supply Voltage

ME-16, -17: 24 VAC/DC; 50/60 Hz, 230 VAC; 50/60 Hz

ME-16, -17: 24 VAC +20%, -10% @ 2 VA, 50/60 Hz, 24 VDC +20%, -10% @ 85 mA

ME-4430, -4530: 24 VAC 10% @ 8 VA, 50/60 Hz

ME-4431, -4531: 110 VAC, 50/60 Hz

ME-46, -47, -48, -49: 24 VAC +10%, -5% @ 9 VA, 50/60 Hz

ME-41, -42, -43: 24 VAC +10%, -5% @ 1 VA, 50/60 Hz

Signal Input

OT-11, -21, -51: thermostatic, modulating, temperature up = stem down

MP-5100: pneumatic, SR, 3-6 psi modulating or 2-position

MP-5300: pneumatic, SR, 7-11 psi modulating or 2-position

ME-16, -17: 2-position, SR, two-wire, wax technology, can be pulsed

ME-44, -45: 2-position, SR two-wire

ME-4640: floating, SR

ME-4740: PWM, SR, 0.2 to 5 second pulse, 5 seconds full stroke

ME-48, -49: proportional, SR, 2-10/10-2 VDC or 4-20 mA

ME-4140: floating, NSR, triac or low energy gold contacts

ME-4240: PWM, NSR

ME-4340: proportional, NSR, 2-10 VDC

Input Impedance

ME-46, -47: 2 kΩ

ME-48, -49: 200 kΩ

ME-41, -42: 2 kΩ

ME-4340: 200 kΩ

Wiring

ME-16, -17: 40″ (100 cm) leads

ME-44, -45: 4″ (10 cm) leads

ME-46, -47, -48, -49: 32″ plenum-rated cable

ME-41, -42, -43: 32″ plenum-rated cable

Action

Cartridges spring return valve stem up; valve body designs are either stem-up-to-open (SUTO) or stem-up-to-close (SUTC); spring return actuators available in fail-stem-up or fail-stem-down

Actuator Compatibility

All actuators: compatible with all valve bodies (exception: V222 valves use MP actuators only)

Actuator Mounting

Knurled mounting ring, hand tighten

Air Connections

Brass barbs for 5/32″ or 1/4″ OD flexible tubing (MP actuators, maximum 60 psig)

Dimensions

OT-11, -21, -51: 3.4"H x 2.4" Dia. (8.6 x 6.0 cm)

MP-51, -53: 2.5"H x 3.1" Dia. (6.4 x 7.8 cm)

ME-16, -17: 3.1"H x 1.8"W x 1.8"D (7.9 x 4.6 x 4.6 cm)

ME-44, -45: 3.5"H x 2.8"W x 2.5"D (8.9 x 7.1 x 6.3 cm)

ME-46, -47, -48, -49: 3.5"H x 3.0"W x 3.5"D (8.9 x 7.6 x 8.9 cm)

ME-41, -42, -43: 3.1"H x 2.5"W x 3.3"D (7.9 x 6.4 x 8.5 cm)

Drive Time

OT-11, -21, -51: variable

MP-51, -53: variable

ME-16, -17: <5 minutes

ME-44, -45: 10 seconds;

ME-46, -47, -48, -49: 60 seconds drive, 25 seconds spring

ME-41, -42: 90 seconds

ME-4340: 60 seconds

Setpoint Range

OT-11, -21, -51: 40° to 85℉ (4° to 29℃)

Feedback

ME-46, -47, -48, -49: 1-5 VDC, 100 kΩ impedance

ME-41, -42, -43: 1-5 VDC, 33 kΩ impedance

Manual Override

ME-16, -17 actuators only

Operating Temperature

OT-11, -21, -51: 40° to 85℉ (4° to 29℃)

MP-51, -53: 41° to 122℉ (5° to 50℃)

ME-16, -17: 46° to 122℉ (8° to 50℃)

ME-44, -45: 41° to 122℉ (5° to 50℃)

ME-46, -47, -48, -49: 32° to 122℉ (0° to 50℃)

ME-41, -42, -43: 40° to 122℉ (5° to 50℃)

Enclosure Rating

NEMA 1 (IP20)

Weight

V222-12, -34: 1.5 lb (0.68 Kg)

V241-12: 0.60 lb (0.27 Kg)

V241-34: 1.0 lb (0.45 Kg)

V243-12: 0.55 lb (0.25 Kg)

V243-34: 0.75 lb (0.34 Kg)

V243-10: 2.1 lb (0.95 Kg)

V245-12: 0.50 lb (0.23 Kg)

V245-34: 0.70 lb (0.32 Kg)

V320-12: 0.95 lb (0.43 Kg)

V320-34: 1.0 lb (0.45 Kg)

V345-10: 2.1 lb (0.95 Kg)

V325-12: 0.60 lb (0.27 Kg)

V325-34: 0.80 lb (0.35 Kg)

OT-1100: 0.30 lb (0.14 Kg)

MP-51, -53: .40 lb (.18 kg)

ME-16, -17: 0.30 lb (0.14 Kg)

ME-44, -45: 0.75 lb (0.34 Kg)

ME-46, -47, -48, -49: 0.95 lb (0.43 Kg)

ME-41, -42: 0.55 lb (0.25 Kg)

Approvals

CE

Warranty

Valves: 5 years;

Actuators: 2 years

product family features

  • Valves are fully interchangeable with all actuators
  • Complete selection of NPT/Sweat/Union fittings
  • Electric, thermostatic, thermo-electric and pneumatic actuators
  • Interchangeable cartridges for multiple Cvs
  • Full service from the top of the valve body

more information & related documents

Family Description

Spartan V200 two-way and V300 three-way zone valve products offer a wide variety of connection sizes and types. This wide selection of valves and actuators work with electric, thermostatic, thermo-electric, and pneumatic applications. The 2-way zone valve and 3-way zone valve products feature interchangeable bodies compatible with all the actuators. Complete flexibility and easy selection make these the zone valves of choice for Building Automation Systems, BAS, and HVAC applications.
