SSC61U | Siemens Industry | Control Valves

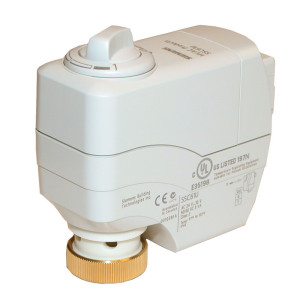

MT Series Actuator, 24 Vac, 0 to 10 Vdc control, SR, 200N.
Brand:Siemens Industry
MPN:SSC61U
SKU:SSC61U
List Price:
$-.--
Today's Price:
$-.--
Availability: Part discontinued. Please contact your Kele representative at 1.877.826.9045 for replacement.
product specifications
Fail-Safe
Non-Spring Return
Supply Voltage
24 VAC
Supply Va
2 VA
Control Signal
0-10 V
product series specifications
- Supply Voltage:
- 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
- Supply VA:
- :
- Two-position actuators 9.8 VA
- :
- Three-position (floating) actuators 0.8 VA
- :
- Proportional (0-10 VDC) actuators 2.5 VA
- Signal Input:
- Two-position, three-position (floating), and 0-10 VDC proportional
- Stroke Time:
- :
- Two-position actuators 35 seconds
- :
- Three-position (floating) actuators 150 seconds
- :
- Proportional (0-10 VDC) actuators 34 seconds
- Operating Temperature:
- 41° to 122‚Ñâ (5° to 50‚ÑÉ)
- Operating Humidity:
- 0 to 90% RH non-condensing
- Enclosure Rating:
- NEMA 1 (indoor only)
- Dimensions:
- :
- SFA/P 3.3‚Ä=W x 3.4‚Ä=H x 2.3‚Ä=D (11.2 x 8.5 x 5.8 cm)
- :
- SSA/P 3.3‚Ä=W x 3.3‚Ä=H x 1.9‚Ä=D (8.3 x 8.3 x 4.8 cm)
- Weight:
- :
- Two-position actuators 1.2 lb (0.54 Kg)
- :
- Three-position (floating) actuators 0.5 lb (0.25 Kg)
- :
- Proportional (0-10 VDC) actuators 0.5 lb (0.25 Kg)
- Approvals:
- CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,
- Warranty:
- 2 year
product series features
- UL Listed for plenum installations
- Direct coupled installation without tools
- Manual override with auto unlock
- Visual position indication
more information & related documents
Series Description
The Siemens Powermite MT Series SFA/SFP and SSA/SSP Series of electronic valve actuators accepts 24 or 120 VAC power supply signal to provide two-position control. This actuator works with Zone Valves with 1/10-inch (2.5mm) stroke.
Kele Description
ELEC-MECHANC VALVE ACTUATOR 24
Manufacturer
Siemens Industry
