599-01088

599-01088 | Siemens Industry | Control Valves

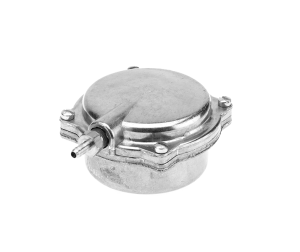

Valve Actuator, Pneumatic, 2, 7/32 Stroke, 1/8 NPT

Brand:Siemens Industry

MPN:599-01088

SKU:599-01088

List Price:

$172.00

Today's Price:

$89.44



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product series specifications

    Supply Voltage:
  • 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
    Supply VA:
    :
  • Two-position actuators 9.8 VA
    :
  • Three-position (floating) actuators 0.8 VA
    :
  • Proportional (0-10 VDC) actuators 2.5 VA
    Signal Input:
  • Two-position, three-position (floating), and 0-10 VDC proportional
    Stroke Time:
    :
  • Two-position actuators 35 seconds
    :
  • Three-position (floating) actuators 150 seconds
    :
  • Proportional (0-10 VDC) actuators 34 seconds
    Operating Temperature:
  • 41° to 122‚Ñâ (5° to 50‚ÑÉ)
    Operating Humidity:
  • 0 to 90% RH non-condensing
    Enclosure Rating:
  • NEMA 1 (indoor only)
    Dimensions:
    :
  • SFA/P 3.3‚Ä=W x 3.4‚Ä=H x 2.3‚Ä=D (11.2 x 8.5 x 5.8 cm)
    :
  • SSA/P 3.3‚Ä=W x 3.3‚Ä=H x 1.9‚Ä=D (8.3 x 8.3 x 4.8 cm)
    Weight:
    :
  • Two-position actuators 1.2 lb (0.54 Kg)
    :
  • Three-position (floating) actuators 0.5 lb (0.25 Kg)
    :
  • Proportional (0-10 VDC) actuators 0.5 lb (0.25 Kg)
    Approvals:
  • CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,
    Warranty:
  • 2 year

product series features

  • UL Listed for plenum installations
  • Direct coupled installation without tools
  • Manual override with auto unlock
  • Visual position indication

more information & related documents

Series Description

The Siemens Powermite MT Series SFA/SFP and SSA/SSP Series of electronic valve actuators accepts 24 or 120 VAC power supply signal to provide two-position control. This actuator works with Zone Valves with 1/10-inch (2.5mm) stroke.

Kele Description

2ACTUATOR-POWERMITE

Manufacturer

Siemens Industry

Related Documents

PDF - Powermite MT Series 2-way Technical InstructionsPowermite MT Series 2-way Technical Instructions
PDF - Powermite MT Series 3-way Technical InstructionsPowermite MT Series 3-way Technical Instructions
PDF - Powermite Pneumatic Actuator Technical InstructionsPowermite Pneumatic Actuator Technical Instructions
PDF - Powermite SQS Floating Actuator Technical InstructionsPowermite SQS Floating Actuator Technical Instructions
PDF - Powermite SQS Proportional Actuator Technical InstructionsPowermite SQS Proportional Actuator Technical Instructions
PDF - Powermite SSC Floating Actuator Technical InstructionsPowermite SSC Floating Actuator Technical Instructions
PDF - Powermite SSC Proportional Actuator Technical InstructionsPowermite SSC Proportional Actuator Technical Instructions
