248-00532

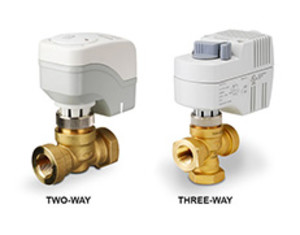

* product series image displayed

248-00532 | Siemens Industry | Control Valves

3W,3/4IN,SWT,CV 4.1,NSR,0-10VDC NO,24VAC

Brand:Siemens Industry

MPN:248-00532

SKU:248-00532

List Price:

$395.00

Today's Price:

$205.40



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Connection

Sweat

Cv

4.1 CV

Fail-Safe

Non-Spring Return

Supply Voltage

24 VAC

Type

Assembly

Pattern

3-Way

Trim Material

Brass

Size

3/4 in

Control Signal

0-10 VDC

product series specifications

    Size:
  • 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=
    Cv Range:
  • 1, 2.5, 4, 4.1, 7
    Stroke:
  • 0.1" (2.5 mm)
    Body Pattern:
  • 2-way, 3-way diverting
    Flow Characteristic:
  • Linear
    Leakage Rating:
  • ANSI Class III (0.1% of rated capacity)
    Body Rating:
  • ANSI Class 125
    Media Temperature Range:
  • 34° to 230‚Ñâ (1° to 110‚ÑÉ)
    Supply Voltage:
  • 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz
    Supply VA:
  • Two-position actuators: 9.8 VA; three-position (floating) actuators: 0.8 VA; proportional (0-10 VDC) actuators: 2.5 VA
    Signal Input:
  • Two-position, three-position (floating), and 0-10 VDC proportional
    Action:
  • Two-way valves are stem-up-to-open; three-way valves are diverting; normal position is determined by choice of actuator
    Stroke Time:
  • Two-position actuators: 35 seconds; three-position (floating) actuators: 150 seconds; proportional (0-10 VDC) actuators: 34 seconds
    Operating Temperature:
  • 41° to 122‚Ñâ (5° to 50‚ÑÉ)
    Operating Humidity:
  • 0 to 90% RH non-condensing
    Enclosure Rating:
  • NEMA 1 (indoor only)
    Weight:
  • Two-position actuators: 1.2 lb (0.54 Kg); three-position (floating) actuators: 0.5 lb (0.25 Kg); proportional (0-10 VDC) actuators: 0.5 lb (0.25 Kg)
    Approvals:
  • CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL FIle #E220114,
    Warranty:
  • 2 years

product series features

  • Direct-coupled universal bonnet
  • Direct-coupled installation without tools
  • Manual override with 3mm hex wrench
  • Visual position indication

more information & related documents

Series Description

The Siemens 599 Series zone valves work with any SFA/P Series or SSA/P Series electric actuator. The actuators provide two-position, three-position, or 0-10 VDC control. Typical applications include hot or chilled water for zones with radiators, floor heating via manifolds, fan coil units, cooling ceilings, wall-mounted boilers, and VAV applications.

Kele Description

3W,3/4IN,SWT,CV 4.1,NSR,0-10VDC NO,24VAC

Manufacturer

Siemens Industry
