VT3223

VT3223 | Schneider Electric Buildings | Control Valves

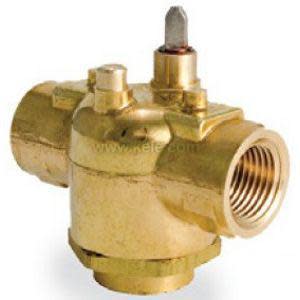

VB: 1/2 in, 3W Mix/Div, Zone, NPT, BR, 4 cv, Erie PopTop, No Steam

Brand:Schneider Electric Buildings

MPN:VT3223

SKU:VT3223

List Price:

$113.68

Today's Price:

$59.11



Availability: 12 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Connection

NPT

Cv

4 CV

Type

Valve Only

Pattern

3-Way

Trim Material

Brass

Size

1/2 in

Control Signal

2 Position

product series specifications

    Size:
  • 1/2", 3/4", 1"
    Cv Range:
  • 1.0 to 8.0
    Connections:
  • FNPT, Sweat, or inverted flare (3/4" only)
    Flow Characteristic:
  • Quick Opening
    Leakage Rating:
  • ANSI Class IV (0.01% of rated capacity)
    Maximum Closeoff Pressure:
  • Cv 1.0-1.5: 60 psid (414 kPa) AG actuator, 75 psid (517 kPa) AH actuator
    Cv 2.5-3.0: 40 psid (276 kPa) AG actuator, 50 psid (345 kPa) AH actuator:
    Cv 3.5-4.0: 25 psid (172 kPa) AG actuator, 30 psid (207 kPa) AH actuator:
    Cv 5.0: 20 psid (137 kPa) AG actuator, 25 psid (172 kPa) AH actuator:
    Cv 7.5-8.0: 17 psid (117 kPa) AG actuator, 20 psid (137 kPa) AH actuator:
    Maximum Pressure Rating:
  • 300 psig (2067 kPa)
    Materials Of Construction:
  • Brass valve body and seat, nickel-plated stem, BUNA N paddle; stainless steel base plate and aluminum cover on actuator
    Media Compatibility:
  • Hot or chilled water; 50% or less ethylene glycol; 15 psig steam
    Media Temperature Range:
  • 32° to 200‚Ñâ (0° to 93‚ÑÉ) with AG actuator; up to 250‚Ñâ (121‚ÑÉ) with AH actuator
    Supply Voltage:
  • 24 VAC ±10% @ 7 VA; 120 VAC ±10%, 50/60 Hz; 208-277V models also available
    Control Signal:
  • Two-position, two-wire
    Wiring:
  • 18" (45.2 cm) leads
    Action:
  • Two-way valves: N.O./N.C. determined by choice of actuator; three-way valves: N.C. actuator only
    Actuator Compatibility:
  • AG (general purpose) general closeoff (GCO) or AH (high performance) high closeoff (HCO) type actuators only
    Actuator Mounting:
  • PoptopÆ
    Auxiliary Contacts:
  • N.O. contacts, 24-240 VAC, 101mA min to 5A max; 9-30 VDC @ 100 mA max
    Drive Time:
  • 25 seconds maximum @ 60 Hz
    Manual Override:
  • N.C. actuators only
    Spring Return Time:
  • 9 seconds maximum
    Operating Temperature:
  • AG actuator: maximum ambient 104‚Ñâ (40‚ÑÉ);
    AH actuator: maximum ambient 169‚Ñâ (77‚ÑÉ):
    Weight:
  • Valve bodies: <1.4 lb (0.64 Kg)
    Actuators: 1.0 lb (0.45 Kg):
    Approvals:
    Warranty:
  • 2 years

product series features

  • Two- or three-way mixing/diverting body patterns
  • Removable and replaceable actuator
  • NPT, sweat, or inverted flare connections
  • 2-position spring return control

more information & related documents

Series Description

The VT Series Two-Position PopTop™ zone valves offer a wide range of models to handle chilled water, hot water, and 15 psig (103 kPa) steam applications. Each PopTop zone valve features a removable actuator to aid in both installation and service. The 2-way zone valve and 3-way zone valve are available in many body patterns and with normally open or normally closed actuators. This wide range of zone valves meets a variety of needs for Building Automation Systems, BAS, and HVAC applications.
