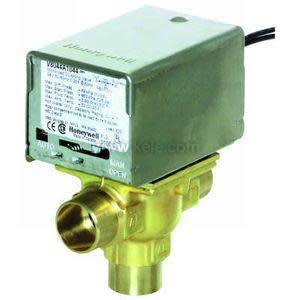

V8044E1011/U | Resideo | Control Valves
24V 3/4 in Sweat N.C. Zone Valve
Brand:Resideo
MPN:V8044E1011/U
SKU:V8044E1011/U
List Price:
$553.00
Today's Price:
$287.56
Log in for customized pricingproduct specifications
Type
Assembly
Connection
Sweat
Valve Type
Diverting
Cv
7 CV
Fail-Safe
Spring Return
Supply Voltage (Nominal)
24 VAC
Trim Material
Stainless Steel
Pattern
3-way
Size
3/4 in
product series specifications
Application:Hydronic Control
Dimensions (in.):4 5/8 in. high x 3 1/2 in. wide x 2 3/8 in. deep
Dimensions (mm):117 mm high x 90 mm wide x 60 mm deep
Comments Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.
Frequency: 50 Hz; 60 Hz
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing
Voltage: 24 Vac; Power Consumption -7.7 VA
Timing Nominal Open: 30 sec
Ambient Temperature Range: 125°F (52°C) Maximum
Connection Type: Sweat
Body Pattern: Three-way, Diverting
Current Draw: 0.32A
Fluid Temperature: 40°F to 200°F (5°C to 93°C)
Maximum Differential Pressure Ratings (Close-off) (psi): 20 psi
Maximum Differential Pressure Ratings (Close-off) (kPa): 138 kPa
Electrical Connections (in.): 18 in. leads
Electrical Connections (mm): 457 mm leads
Capacity (Cv): 4 Cv
Capacity (Kv): 3.4 Kv
Valve Action: Spring Return
Valve Type: Zone Valve
Materials (Body): Brass
Materials (Seat): Brass
Materials (Stem): Stainless Steel
Actuation: Two position
De-energized Position Port A: Normally Closed
Static Pressure Rating (psi): 125 psi
Static Pressure Rating (kPa): 862 kPa
Materials (Plug/Ball/Disc): Buna-N (NBR) Rubber Ball
Materials (Packing): EPDM rubber
Manual Opener: Yes
Approvals: Underwriters Laboratories Inc. UL Listed: File MH11826
Warranty:1 year
product series features
- Provide 2-position diverting control of water
- Compact construction for easy installation.
- Manual opener for valve operation on power failure.
- Valve returns to automatic position when power is restored.
- Choice of sweat or flare fitting brass end connections for standard copper tubing.
- Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
- Complete powerhead may be removed or replaced without breaking the line connections or draining the system.
- All models can be installed without disassembling the valve.
- Fits under the cover of most baseboards.
- Available with integral auxiliary end switch (V8044E) to permit sequencing of auxiliary equipment.n
more information & related documents
Series Description
The Honeywell V8044Series valve is designed for low voltage, 2-position diverting valves. There is a manual opener for valve operation on power failure. Valve returns to automatic position when power is restored. It is made of compact construction for easy installation. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
DIV-VLV/ 24V/3/4IN/SWT/7CV/ 10/PSI/CLOSE-OFF.
Manufacturer
Resideo
Related Documents
V8044 Datasheet
