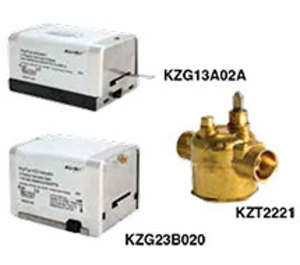

KZT2222 | Kele | Control Valves
2-WAY/1/2IN/NPT/ 2POS/CV=2.5/WATER
Brand:Kele
MPN:KZT2222
SKU:KZT2222
List Price:
$82.19
Today's Price:
$42.74
product specifications
Connection
NPT
Cv
2.5 CV
Fail-Safe
Spring Return
Pattern
2-Way
Trim Material
Nickel
Size
1/2 in
Control Signal
2 Position
product series specifications
- Size:
- 1/2", 3/4", 1"
- Cv Range:
- 1.0 to 8.0
- Connections:
- FNPT, Sweat, or inverted flare (3/4" only)
- Flow Characteristic:
- Quick Opening
- Leakage Rating:
- ANSI Class IV (0.01% of rated capacity)
- Maximum Closeoff Pressure:
- Cv 1.0-1.5: 60 psid (414 kPa) KZG actuator, 75 psid (517 kPa) KZH actuator:
- Cv 2.5-3.0: 40 psid (276 kPa) KZG actuator, 50 psid (345 kPa) KZH actuator:
- Cv 3.5-4.0: 25 psid (172 kPa) KZG actuator, 30 psid (207 kPa) KZH actuator:
- Cv 5.0: 20 psid (137 kPa) KZG actuator, 25 psid (172 kPa) KZH actuator:
- Cv 7.5-8.0: 17 psid (117 kPa) KZG actuator, 20 psid (137 kPa) KZH actuator:
- Maximum Pressure Rating300 psig (2067 kPa):
- Materials Of Construction:
- Brass valve body and seat, nickel-plated stem, BUNA N paddle; stainless steel base plate and aluminum cover on actuator
- Media Compatibility:
- Hot or chilled water; 50% or less ethylene glycol; 15 psig steam
- Media Temperature Range32° to 200‚Ñâ (0° to 93‚ÑÉ) with AG actuator; up to 250‚Ñâ (121‚ÑÉ) with AH actuator:
- Supply Voltage:
- 24 VAC ±10% @ 7 VA; 120 VAC ±10%, 50/60 Hz; 208-277V models also available
- Control Signal:
- Two-position, two-wire
- Wiring:
- 18" (45.2 cm) leads
- Action:
- Two-way valves: N.O./N.C. determined by choice of actuator; three-way valves: N.C. actuator only
- Actuator Compatibility:
- KZG (general purpose) or KZH (high performance) type actuators only
- Actuator Mounting:
- PoptopÆ
- Auxiliary Contacts:
- N.O. contacts, 24-240 VAC, 101mA min to 5A max; 9-30 VDC @ 100 mA max
- Auxiliary Switch:
- Models with auxiliary switch available
- Drive Time:
- 25 seconds maximum @ 60 Hz
- Manual Override:
- N.C. actuators only
- Operating Temperature:
- KZG actuator: maximum ambient 104‚Ñâ (40‚ÑÉ);
- :
- KZH actuator: maximum ambient 169‚Ñâ (77‚ÑÉ)
- Spring Return Time:
- 9 seconds maximum
- Weight:
- Valve bodies: <1.4 lb (0.64 Kg)
- :
- Actuators: 1.0 lb (0.45 Kg)
- Approvals:
- UL FIle #MH25807; CE
- Warranty:
- 2 years
product series features
- Two- or three-way mixing/diverting body patterns
- Removable and replaceable actuator
- NPT, sweat, or inverted flare connections
- 2-position spring return control
more information & related documents
Series Description
The KZ Series Two-Position PopTop™ zone valves offer a wide range of models to handle chilled water, hot water, and 15 psig (103 kPa) steam applications. Each PopTop zone valve features a removable actuator to aid in both installation and service. The 2-way zone valve and 3-way zone valve are available in many body patterns and with normally open or normally closed actuators. This wide range of zone valves meets a variety of needs for Building Automation Systems, BAS, and HVAC applications.
Kele Description
2-WAY/1/2IN/NPT/ 2POS/CV=2.5/WATER
Manufacturer
Kele
