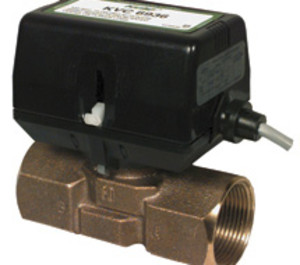

* product series image displayed

KVC7934 | Kele | Control Valves

MOD CONTROL ACTUATOR 2-10VDC

Brand:Kele

MPN:KVC7934

SKU:KVC7934

List Price:

$496.00

Today's Price:

$257.92

product datasheet

catalog page

product specifications

Supply Va

7 VA

Power Supply

24 VAC

Type

Actuator Only

Connection

Wire Leads

Actuator Type

Electric

Fail-Safe

Spring Return

Supply Voltage (Nominal)

24 VAC

Valve Trim

Brass

Control Signal

Analog

product series specifications

Size: 1/2", 3/4", 1", 1-1/4"

Cv: 0.7, 4.7, 0.7, 2.9, 4.7, 8.7

Connections: FNPT

Body Pattern: 2-Way, 3-Way

Flow Characteristic: Linear

Leakage Rating: ANSI Class IV (0.01% of Rated Capacity)

Maximum Closeoff Pressure: 60 psid (414 kPa)

Pressure Rating: 300 psig (2069 kPa)

Materials Of Construction: Bronze valve body, stainless steel stem, Ryton® and Noryl® trim, Noryl® and Ryton® plastic actuator housing

Media Compatibility: Hot water, chilled water

Media Temperature Range: 34° to 203°F (1° to 95°C)

Supply Voltage: 24 VAC @ 6 VA, 50/60 Hz

Control Signal: Two-position, floating, or proportional

Wiring: 39" (99 cm) cable, 20 AWG conductors

Action: 2-way: Stem spring up on actuator removal, stem up to close (bi-directional flow)

3-way: Stem spring up on actuator removal, stem up closes port A, stem down closes port B

Actuator Mounting: Twist-lock mount with latch

Manual Override: Combination override lever and position indicator

Stroke Time: KVCx114: 6 seconds; KVCx93x: 120 seconds

Weight: KVCxxx4: 0.9 lb (0.39 Kg); KVCxxx6: 1.1 lb (0.50 Kg)

Warranty: 1 year

product series features

Three-way mixing and diverting in one body
Two-way bi-directional flow for simple installation
Linear flow characteristics
Easily replaceable seat cartridge
Twist-on low power/long life actuator
Manual override
Fail-in-place or power-fail return actuator models
Selectable power fail return direction models

more information & related documents

Series Description

The Kele KVC Series includes two- and three-way, hot and chilled water control valves and fail-in-place or power-fail return electric actuators. The unique cartridge design enables the valve to be piped mixing or diverting for the three-way valve, and either flow direction for the two-way valve. Specially designed for Building Automation Systems, BAS, the actuator uses a unique twist-off mount for easy installation or servicing. These control valves are available with two-position, floating, or proportional control signals.

Kele Description

MOD CONTROL ACTUATOR 2-10VDC

Manufacturer

Kele
