KVC6934

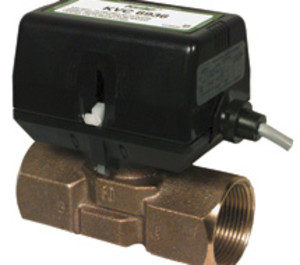

* product series image displayed

KVC6934 | Kele | Control Valves

FLTG CTRL ACTUATOR 3-WIRE SPDT

Brand:Kele

MPN:KVC6934

SKU:KVC6934

List Price:

$386.00

Today's Price:

$200.72



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Fail-Safe

Spring Return

Supply Va

7 VA

Control Signal

Floating

Valve Trim

Brass

product series specifications

    Size:
  • 1/2", 3/4", 1", 1-1/4"
    Cv:
  • 0.7, 4.7, 0.7, 2.9, 4.7, 8.7
    Connections:
  • FNPT
    Body Pattern:
  • 2-Way, 3-Way
    Flow Characteristic:
  • Linear
    Leakage Rating:
  • ANSI Class IV (0.01% of Rated Capacity)
    Maximum Closeoff Pressure:
  • 60 psid (414 kPa)
    Pressure Rating:
  • 300 psig (2069 kPa)
    Materials Of Construction:
  • Bronze valve body, stainless steel stem, RytonÆ and NorylÆ trim, NorylÆ and RytonÆ plastic actuator housing
    Media Compatibility:
  • Hot water, chilled water
    Media Temperature Range:
  • 34° to 203‚Ñâ (1° to 95‚ÑÉ)
    Supply Voltage:
  • 24 VAC @ 6 VA, 50/60 Hz
    Control Signal:
  • Two-position, floating, or proportional
    Wiring:
  • 39" (99 cm) cable, 20 AWG conductors
    Action:
    :
  • 2-way Stem spring up on actuator removal, stem up to close (bi-directional flow)
    :
  • 3-way Stem spring up on actuator removal, stem up closes port A, stem down closes port B
    Actuator Mounting:
  • Twist-lock mount with latch
    Manual Override:
  • Combination override lever and position indicator
    Stroke Time:
    :
  • KVCx114 6 seconds
    :
  • KVCx93x 120 seconds
    Weight:
    :
  • KVCxxx4 0.9 lb (0.39 Kg)
    :
  • KVCxxx6 1.1 lb (0.50 Kg)
    Approvals:
    Warranty:
  • 1 year

product series features

  • Three-way mixing and diverting in one body
  • Two-way bi-directional flow for simple installation
  • Linear flow characteristics
  • Easily replaceable seat cartridge
  • Twist-on low power/long life actuator
  • Manual override
  • Fail-in-place or power-fail return actuator models
  • Selectable power fail return direction models

more information & related documents

Series Description

The Kele KVC Series includes two- and three-way, hot and chilled water control valves and fail-in-place or power-fail return electric actuators. The unique cartridge design enables the valve to be piped mixing or diverting for the three-way valve, and either flow direction for the two-way valve. Specially designed for Building Automation Systems, BAS, the actuator uses a unique twist-off mount for easy installation or servicing. These control valves are available with two-position, floating, or proportional control signals.

Kele Description

FLTG CTRL ACTUATOR 3-WIRE SPDT

Manufacturer

Kele
