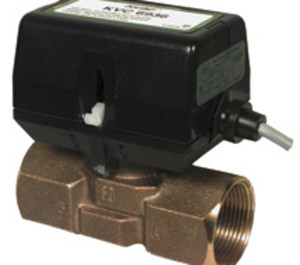

KVC2100N66

KVC2100N66 | Kele | Control Valves

1IN VALVE 2W FNPT CV=6.6

Manufacturer:Kele

MPN:KVC2100N66

SKU:KVC2100N66

list price:

178.71

89.35



(login for better pricing)
USD

availability:In Stock

add to cart

arrow

product family specifications

Size

1/2", 3/4", 1", 1-1/4"

Cv

0.7, 4.7, 0.7, 2.9, 4.7, 8.7

Connections

FNPT

Body Pattern

2-Way, 3-Way

Flow Characteristic

Linear

Leakage Rating

ANSI Class IV (0.01% of Rated Capacity)

Maximum Closeoff Pressure

60 psid (414 kPa)

Pressure Rating

300 psig (2069 kPa)

Materials Of Construction

Bronze valve body, stainless steel stem, Ryton® and Noryl® trim, Noryl® and Ryton® plastic actuator housing

Media Compatibility

Hot water, chilled water

Media Temperature Range

34° to 203℉ (1° to 95℃)

Supply Voltage

24 VAC @ 6 VA, 50/60 Hz

Control Signal

Two-position, floating, or proportional

Wiring

39" (99 cm) cable, 20 AWG conductors

Action

2-way Stem spring up on actuator removal, stem up to close (bi-directional flow)

3-way Stem spring up on actuator removal, stem up closes port A, stem down closes port B

Actuator Mounting

Twist-lock mount with latch

Manual Override

Combination override lever and position indicator

Stroke Time

KVCx114 6 seconds

KVCx93x 120 seconds

Weight

KVCxxx4 0.9 lb (0.39 Kg)

KVCxxx6 1.1 lb (0.50 Kg)

Approvals

Warranty

1 year

product family features

  • Three-way mixing and diverting in one body
  • Two-way bi-directional flow for simple installation
  • Linear flow characteristics
  • Easily replaceable seat cartridge
  • Twist-on low power/long life actuator
  • Manual override
  • Fail-in-place or power-fail return actuator models
  • Selectable power fail return direction models

more information & related documents

Family Description

The Kele KVC Series includes two- and three-way, hot and chilled water control valves and fail-in-place or power-fail return electric actuators. The unique cartridge design enables the valve to be piped mixing or diverting for the three-way valve, and either flow direction for the two-way valve. Specially designed for Building Automation Systems, BAS, the actuator uses a unique twist-off mount for easy installation or servicing. These control valves are available with two-position, floating, or proportional control signals.

Kele Description

1IN VALVE 2W FNPT CV=6.6

Manufacturer

Kele
