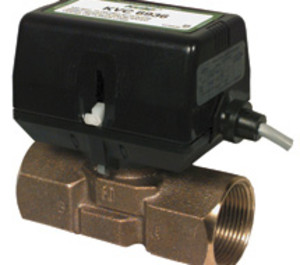

KVC2075N47 | Kele | Control Valves
3/4IN VALVE 2W FNPT CV=4.7
Brand:Kele
MPN:KVC2075N47
SKU:KVC2075N47
List Price:
$206.00
Today's Price:
$107.12
Availability: 11 In Stock
product specifications
Connection
NPT
Cv
4.7 CV
Pattern
2-Way
Size
3/4 in
product series specifications
- Size:
- 1/2", 3/4", 1", 1-1/4"
- Cv:
- 0.7, 4.7, 0.7, 2.9, 4.7, 8.7
- Connections:
- FNPT
- Body Pattern:
- 2-Way, 3-Way
- Flow Characteristic:
- Linear
- Leakage Rating:
- ANSI Class IV (0.01% of Rated Capacity)
- Maximum Closeoff Pressure:
- 60 psid (414 kPa)
- Pressure Rating:
- 300 psig (2069 kPa)
- Materials Of Construction:
- Bronze valve body, stainless steel stem, RytonÆ and NorylÆ trim, NorylÆ and RytonÆ plastic actuator housing
- Media Compatibility:
- Hot water, chilled water
- Media Temperature Range:
- 34° to 203‚Ñâ (1° to 95‚ÑÉ)
- Supply Voltage:
- 24 VAC @ 6 VA, 50/60 Hz
- Control Signal:
- Two-position, floating, or proportional
- Wiring:
- 39" (99 cm) cable, 20 AWG conductors
- Action:
- :
- 2-way Stem spring up on actuator removal, stem up to close (bi-directional flow)
- :
- 3-way Stem spring up on actuator removal, stem up closes port A, stem down closes port B
- Actuator Mounting:
- Twist-lock mount with latch
- Manual Override:
- Combination override lever and position indicator
- Stroke Time:
- :
- KVCx114 6 seconds
- :
- KVCx93x 120 seconds
- Weight:
- :
- KVCxxx4 0.9 lb (0.39 Kg)
- :
- KVCxxx6 1.1 lb (0.50 Kg)
- Approvals:
- Warranty:
- 1 year
product series features
- Three-way mixing and diverting in one body
- Two-way bi-directional flow for simple installation
- Linear flow characteristics
- Easily replaceable seat cartridge
- Twist-on low power/long life actuator
- Manual override
- Fail-in-place or power-fail return actuator models
- Selectable power fail return direction models
more information & related documents
Series Description
The Kele KVC Series includes two- and three-way, hot and chilled water control valves and fail-in-place or power-fail return electric actuators. The unique cartridge design enables the valve to be piped mixing or diverting for the three-way valve, and either flow direction for the two-way valve. Specially designed for Building Automation Systems, BAS, the actuator uses a unique twist-off mount for easy installation or servicing. These control valves are available with two-position, floating, or proportional control signals.
Kele Description
3/4IN VALVE 2W FNPT CV=4.7
Manufacturer
Kele
Related Documents
KVC-6934, -6936 Datasheet x
