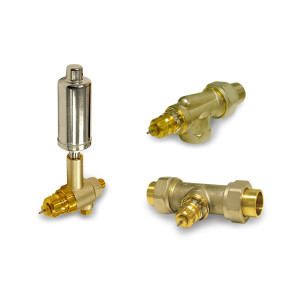

* product series image displayed
013G8250 | Danfoss | Control Valves
VLV MNT DIAL/SENSOR BUILT-IN
Brand:Danfoss
MPN:013G8250
SKU:013G8250
List Price:
$-.--
Today's Price:
$-.--
Availability: Part discontinued. Please contact your Kele representative at 1.877.826.9045 for replacement.
product specifications
Type
Accessory
Flow Pattern
2-Way
Valve Trim
Brass
product series specifications
- Cv Range:
- 1.6 to 2.8
- Pipe Size Range:
- 1/2‚Ä= to 1-1/4‚Ä=
- Maximum Pressure Rating:
- Test pressure 232 psig (1600 kPa)
- Maximum Pressure:
- Water 145 psig (1000 kPa), steam 15 psig (103 kPa)
- Media Compatibility:
- Hot water and low pressure steam
- Media Temperature Range:
- Maximum 250‚Ñâ (121‚ÑÉ) for water or steam
- Setpoint Range:
- Adjustable 45 to 86‚Ñâ (7 to 30‚ÑÉ)
- Operating Temperature:
- Maximum sensor temperature 140‚Ñâ (60‚ÑÉ)
- Connections:
- FPT x MPT union tailpiece or double solder union (1/2‚Ä= and 3/4‚Ä= straight bodies only)
- Body Pattern:
- 2-way straight, angle or side-mount angle
- Approvals:
- ASHRAE/ANSI Standard 102-1983
product series features
- Thermal Actuators provide fast acting modulation for quick response and excellent comfort control
- 24 VAC actuators provide slow, smooth control to eliminate water hammer
- Actuators are equipped with snap-action mounting for fast installation and removal without tools
- Valves packing gland assembly may be replaced while system is in operation to save service time
- Plastic cap supplied to protect the valve pushpin can provide manual control of the valve during installation for easy startup
more information & related documents
Series Description
Danfoss RA2000 Series thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors. Valve bodies and actuators are packaged separately to allow the installer to select a suitable combination for each application.
Kele Description
VLV MNT DIAL/SENSOR BUILT-IN
Manufacturer
Danfoss
