013G8030

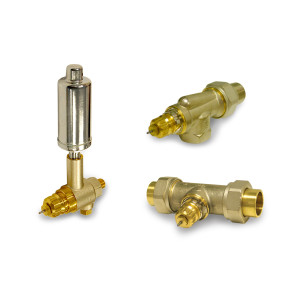

* product series image displayed

013G8030 | Danfoss | Control Valves

1-1/4 IN CV=2.8 SIDE MT ANGLE

Brand:Danfoss

MPN:013G8030

SKU:013G8030

List Price:

$371.49

Today's Price:

$193.17



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Cv

2.8 CV

Size

1-1/4 in

product series specifications

    Cv Range:
  • 1.6 to 2.8
    Pipe Size Range:
  • 1/2‚Ä= to 1-1/4‚Ä=
    Maximum Pressure Rating:
  • Test pressure 232 psig (1600 kPa)
    Maximum Pressure:
  • Water 145 psig (1000 kPa), steam 15 psig (103 kPa)
    Media Compatibility:
  • Hot water and low pressure steam
    Media Temperature Range:
  • Maximum 250‚Ñâ (121‚ÑÉ) for water or steam
    Setpoint Range:
  • Adjustable 45 to 86‚Ñâ (7 to 30‚ÑÉ)
    Operating Temperature:
  • Maximum sensor temperature 140‚Ñâ (60‚ÑÉ)
    Connections:
  • FPT x MPT union tailpiece or double solder union (1/2‚Ä= and 3/4‚Ä= straight bodies only)
    Body Pattern:
  • 2-way straight, angle or side-mount angle
    Approvals:
  • ASHRAE/ANSI Standard 102-1983

product series features

  • Thermal Actuators provide fast acting modulation for quick response and excellent comfort control
  • 24 VAC actuators provide slow, smooth control to eliminate water hammer
  • Actuators are equipped with snap-action mounting for fast installation and removal without tools
  • Valves packing gland assembly may be replaced while system is in operation to save service time
  • Plastic cap supplied to protect the valve pushpin can provide manual control of the valve during installation for easy startup

more information & related documents

Series Description

Danfoss RA2000 Series thermostatic radiator valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors. Valve bodies and actuators are packaged separately to allow the installer to select a suitable combination for each application.

Kele Description

1-1/4 IN CV=2.8 SIDE MT ANGLE

Manufacturer

Danfoss
