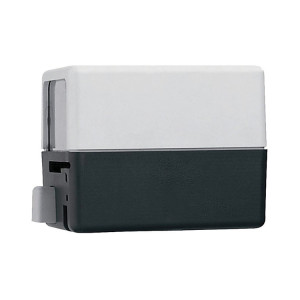

Normally Closed Actuator for Motorized Zone Valves, 24V without auxiliary micro-switch 18” wire

Brand:Caleffi

MPN:Z121000

SKU:Z121000

List Price:

$243.59

Today's Price:

$126.67



Availability: Usually Ships in Less Than 8 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Fail-Safe

Spring Return

Supply Voltage

24 VAC

Control Signal

2 Position

Flow Pattern

2-Way or 3-Way

Valve Trim

Brass

product series specifications

    Size:
  • 1/2", 3/4", 1", 1-1/4" (sweat connections only)
    Cv Range:
  • 1.0, 2.5, 3.5, 5.0, 7.5
    Connections:
  • FNPT, Sweat (BSP, inverted flare and SAE flare available special order)
    Body Pattern:
  • 2-way and 3-way (mixing/diverting)
    Flow Characteristic:
  • Quick Opening
    Leakage Class:
  • ANSI Class III (0.1%)
    Maximum Closeoff Pressure:
    :
  • Cv = 1.0 75 psid (517 kPa)
    :
  • Cv = 2.5 50 psid (345 kPa)
    :
  • Cv = 3.5 30 psid (207 kPa)
    :
  • Cv = 5.0 25 psid (172 kPa)
    :
  • Cv = 7.5 20 psid (137 kPa)
    Maximum Pressure:
  • 300 psig (2067 kPa)
    Materials Of Construction:
  • Forged brass body, stainless steel stem, brass seat, EPDM paddle, aluminum actuator base plate, polycarbonate actuator housing
    Media Compatibility:
  • Hot and chilled water, up to 50% glycol; 15 psig (103 kPa) maximum steam (2-way valves only)
    Media Temperature Range:
  • 32° to 240‚Ñâ (0° to 115‚ÑÉ)
    Supply Voltage:
  • 24 VAC @ 7 VA models, 120 VAC models (208, 240, 277 VAC models available special order)
    Supply VA 7VA:
    Conduit Connection:
  • 7/8" (2.2 cm) knockout for 1/2" conduit
    Wiring:
  • 24 VAC actuators: 18" (45.7 cm) leads;
    120 VAC actuators: 6" (15.2 cm) leads:
    Auxiliary Switch:
  • Model dependant; switch closes when actuator opens, operates with manual override
    Contact Rating:
  • 24 VAC actuators: 0.4A @ 24 VAC
    120 VAC actuators: 5.0A @ 120-277 VAC:
    Actuator Compatibility:
  • 2-way valves: N.O. or N.C. actuator
    3-way valves: N.C. actuator only:
    Drive Time:
  • 10 to 60 seconds
    Spring Return Time:
  • 6 seconds
    Manual Override:
  • Included on N.C. actuators only
    Operating Temperature:
    :
  • 24 VAC, 120 VAC 32° to 104‚Ñâ (0° to 40‚ÑÉ)
    208, 230, 277 VAC:
  • 32° to 170‚Ñâ (0° to 77‚ÑÉ)
    Humidity:
  • 95% Non-Condensing
    Weight:
  • 1/2" valves: 0.70 lb (0.32 Kg)
    :
  • 3/4" valves: 0.80 lb (0.36 Kg)
    :
  • 1" valves: 0.90 lb (0.41 Kg)
    :
  • 1-1/4" valves: 0.90 lb (0.41 Kg)
    :
  • Actuators: 0.92 lb (0.42 Kg)
    Approvals:
  • UL File #E239721, CE, plenum rating
    Warranty:
  • 2 years

product series features

  • High-quality, long-life design
  • High close-off pressures standard
  • Drop-in replacement for existing zone valves
  • Manual override lever for N.C. actuators
  • Actuators available with end switch
  • Front-mount, push-button actuator release
  • Anti-water hammer gear motion
  • Knockout for 1/2 in. conduit
  • Available assembled or separate valve/actuator
  • Hot/Chilled water and Low Pressure Steam

more information & related documents

Series Description

The Z200/Z300 Series zone valves feature, as standard, high temperature ratings and high close-off ratings, which makes them a popular choice for Building Automation Systems, BAS, and HVAC applications. They are available in a full range of common sizes, connection types, and operating voltages.

Kele Description

NC, 2-POS, SR, 24 VAC

Manufacturer

Caleffi
