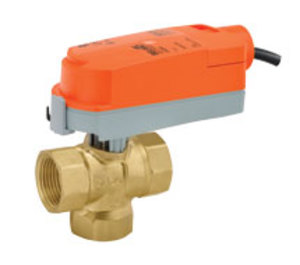

CQKB24-RR | Belimo | Control Valves
VACT/ELECTRONIC FAIL-SAFE/24V/2POS
Brand:Belimo
MPN:CQKB24-RR
SKU:CQKB24-RR
List Price:
$238.00
Today's Price:
$123.76
Availability: 3 In Stock
product specifications
Fail-Safe
Spring Return
Supply Voltage
24 VAC
Type
Actuator Only
Control Signal
2 Position
product series specifications
- Valve Specifications:
- Size:
- 1/2‚Ä=, 3/4‚Ä=
- Connections:
- NPT female ends
- Flow Characteristic:
- Equal percentage (2-way), Linear (3-way)
- Leakage:
- 0%
- Maximum Closeoff :
- :
- Pressure 75 psi
- Maximum Pressure :
- :
- Rating 360 psi
- Materials Of Construction:
- :
- Body Forged Brass
- :
- Ball Chrome Plated Brass
- :
- Stem Brass
- :
- Seats TeflonÆ PTFE
- :
- O-rings EPDM (lubricated)
- Media Compatibility:
- Chilled or hot water, 60% Glycol
- Media Temperature :
- :
- Range 36° to 212‚Ñâ (2° to 100‚ÑÉ)
- Actuator Specifications:
- Supply Voltage:
- :
- CQB24, CQKB24 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
- :
- CQBUP 100 to 240 VAC +10% / -15%, 50/60 Hz
- Supply Current:
- :
- CQB24 0.6 VA
- :
- CQKB24 5 VA
- :
- CQBUP 2 VA
- Control Type:
- :
- -3 On/Off, Floating Point
- :
- -SR Proportional, 2-10VDC
- Manual Override:
- Use actuator to turn valve stem
- Electrical Connection:
- 3 ft. 1 m cable with O” conduit fitting screw terminals
- Power Consumption:
- :
- CQB24 0.3 W running, 0.2 W holding
- :
- CQKB24 2.5 W running, 0.5 W holding
- :
- CQBUP 1.0 W running, 0.7 W holding
- Operating Temperature:
- 35° to 104‚Ñâ (1.7° to 40‚ÑÉ)
- Operating Humidity:
- 5 to 95% RH non condensing
- Weight:
- 0.4 lbs (0.2 Kg)
- (Assembled):
- Approvals :
- UL File #E6073, CE
- Warranty:
- 5 Years
product series features
- Compact design
- Ball valve design with zero leakage eliminates energy loss
- Self-cleaning ball valve technology provides superior clog resistance
- Field adjustable Cv value to meet your design requirements
- Snap fit valve to actuator
more information & related documents
Series Description
The ultra-compact Belimo ZoneTight® Z2000 Series zone valves lead the way in the new generation of room and zone solutions. The ZoneTight Zone Valves offer up to 95% less power consumption than conventional zone valves. Equipped with a space-saving 2-way or 3-way ball valve and an electronic rotary actuator, the valves have an installation height of just 4.33 inches (11 cm) and offer a number of benefits over conventional pressure dependent control valves.
Kele Description
VACT/ELECTRONIC FAIL-SAFE/24V/2POS
Manufacturer
Belimo
