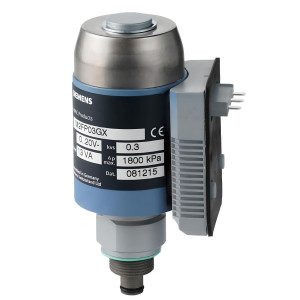

M2FP03GX | Siemens Industry | Control Valves
PILOT VALVE
Brand:Siemens Industry
MPN:M2FP03GX
SKU:M2FP03GX
List Price:
$3,383.00
Today's Price:
$1,759.16
Log in for customized pricingproduct specifications
Type
Valve Only
Connection
Threaded
Valve Type
Pilot
Valve Operation
Modulating
Supply Voltage (Nominal)
24 VAC
Trim Material
Stainless Steel
product series specifications
Stroke resolution ΔH/H100:1:200
Material, valve body: Steel
Ambient temperature, operation: -40…+50 °C
Degree of protection: IP54
Leakage rate:< 0.05% of kvs-value
Material, inside set: CrNi steel/brass
Medium temperature: -40…120 °C
Mounting position: Any
Operating voltage: AC 24 V
Permissible operating pressure: 4300 kPa
Positioning signal: DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time:< 1 s
Spring return function: AB-> A closed
Valve characteristic: Linear
product series features
- Magnetic actuator
- PN40 with soldered CrNi steel connections
- For organic safety refrigerants such as R22, R134a, R404A, R407C, R410A, R507, etc.
- High resolution and control accuracy
- Selectable electrical interface ZM.. with DC 0…10 V, DC 4…20 mA or DC
- Maintenance-free
more information & related documents
Series Description
The M3FB Magnetic Valves are used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This 1/2" valve has a 3.50 CV, a maximum operating pressure of 460 psi and must be applied to closed loop applications.
Kele Description
PILOT VALVE
Manufacturer
Siemens Industry
M2FP03GX_Modulating Pilot Valve - Data sheet
