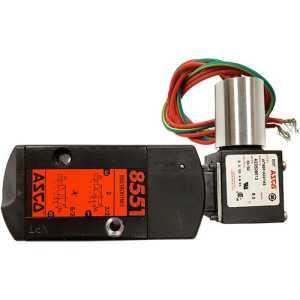

Long black rectangular valve body labeled 8551 and an orange schematic, attached to a silver cylindrical solenoid coil housing with multicolored wires extending from it.

WT8553A017MS DC 24/DC D | ASCO | Control Valves

ASCO WT8553A017MS 5/2 INLINE SPOOL VALVE, 1/2", 24 VDC

Brand:ASCO

MPN:WT8553A017MS DC 24/DC D

SKU:WT8553A017MS DC 24/DC D

List Price:

$1,247.00

Today's Price:

$566.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Black Anodized Aluminum

Max Media Temperature

77 °F

Power Supply

DC Line Power

Type

5/2 Solenoid

Orifice Size

1/2 in

Solenoid Coil

270008-006-D

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

3.7 CV

Pipe Size

1/2 in

Wetted Materials

Black Anodized Aluminum, Aluminum, NBR, PUR

Pressure Range

30 - 150 PSI

Supply Voltage (Nominal)

24 VDC

Seal Material

NBR and PUR Elastomer

product series specifications

Valve Function: Air or Inert Gas

Solenoid Valve Type: Three Way, 5/2

Operation: Single Solenoid, NAMUR Mount

Body Material: Aluminum, Brass

Pipe Size: 1/4 Inch, 1/2 Inch

Valve Media: Air-Inert Gas

Explosion-Proof: Yes

product series features

Compact spool valve, convertible from 3/2 to 5/2
Black anodized aluminum, brass, or stainless steel bodies
NAMUR mount construction
Standard manual operator
Mountable in any position
Vents are from spring side to prevent actuator corrosion
RedHat II, watertight, explosion-proof, or intrinsically safe (SIL-3 Capable) solenoids available

more information & related documents

Series Description

Direct-mount 3-way or 4-way, 5-ported, 2-position piloted spool-type solenoid valves for air or inert gas service. Sizes 1/4" or 1/2". UL, CSA, CE approvals. FM, CSA, IECEx, SIL-3 intrinsically safe models available.

Kele Description

ASCO WT8553A017MS 5/2 INLINE SPOOL VALVE, 1/2", 24 VDC

Manufacturer

ASCO
