WT8401B202M AC 120/60,110/50 D | ASCO | Control Valves

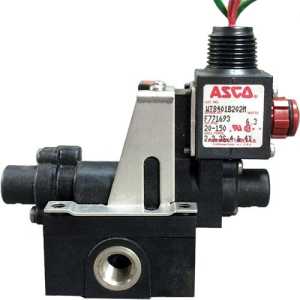

ASCO WT8401B202M 3/4-WAY N/C OR UNIV 1/4" SOLENOID VALVE, 120/60, 110/50 VAC
Brand:ASCO
MPN:WT8401B202M AC 120/60,110/50 D
SKU:WT8401B202M AC 120/60,110/50 D
List Price:
$2,584.00
Today's Price:
$1,173.00
Log in for customized pricingproduct specifications
Max Media Temperature
104 °F
Media Compatibility
Air
Power Supply
AC Line Power
Type
Three Way,Four Way
Valve Operation
Normally Closed or Universal
Orifice Size
1/4 in
Solenoid Coil
266763-032-D
Solenoid Kit
264013-M
Enclosure Rating
NEMA 1
Body Material
Stainless Steel
Cv
0.5 CV
Pipe Size
1/4 in
Wetted Materials
Stainless Steel, PTFE
Pressure Range
20 - 150 PSI
Supply Voltage (Nominal)
120/60 VAC,110/50 VAC
Function
Pilot Valve
Seal Material
PTFE Elastomer
more information & related documents
Series Description
3-Way or 4-Way Normally Closed or Universal Operation ASCO Solenoid Valve. Stainless Steel Body, PTFE Elastomer Seals. 1/4" Pipe Size, 1/4" Orifice, Cv=0.50. Pressure in PSI: Min: 20, Max: Air-150, Max. Media Temperature: 104° F. Enclosure: General Purpose: NEMA 1, NAMUR Mount. Metering Device
Kele Description
ASCO WT8401B202M 3/4-WAY N/C OR UNIV 1/4" SOLENOID VALVE, 120/60, 110/50 VAC
Manufacturer
ASCO
