U8256B045V AC 120/60 D | ASCO | Control Valves

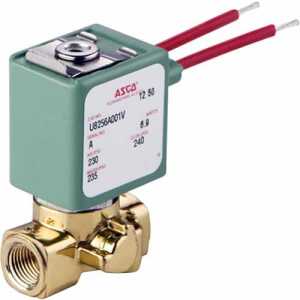

ASCO U8256B045V 2-WAY N/C 1/8" SOLENOID VALVE, 120 VAC/60HZ
Brand:ASCO
MPN:U8256B045V AC 120/60 D
SKU:U8256B045V AC 120/60 D
List Price:
$168.00
Today's Price:
$76.00
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
180 °F
Media Compatibility
Air-Inert Gas,Water-Clean Liquids,Light Oil
Power Supply
AC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
7/64 in
Solenoid Coil
400147-225-D
Cv
0.19 CV
Pipe Size
1/8 in
Wetted Materials
Brass, FKM
Pressure Range
0 - 135 PSI
Supply Voltage (Nominal)
120/60 VAC
Function
General Service
Seal Material
FKM Elastomer
product series specifications
Valve Function: General Service, Potable Water
Solenoid Valve Type: Two Way
Operation: Normally Closed
Body Material: Brass, Stainless Steel
Pipe Size: 1/8 Inch, 1/4 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/8" and 1/4" pipe sizes, normally closed operation
- Brass or stainless steel body valve for air, inert gas, water, and light oils to 300 SSU;
- 316 stainless steel NSF 61 and 169 listed model for potable water and food service use
- Open frame (U) or DIN connector (SC) solenoid enclosures
- General service models are UL recognized, CSA certified
- 316 stainless steel models also carry approvals for NSF 61 drinking water system components and NSF 169 special purpose food equipment and devices, NSF/ANSI Standard 61, Annex G (Lead content ≤0.25%)
- Mountable in any position
more information & related documents
Series Description
Two-way direct-acting solenoid valves. 1/8" and 1/4" pipe size. Normally closed operation. Brass or 316 stainless steel body. For general service, potable water, or food service applications.
Kele Description
ASCO U8256B045V 2-WAY N/C 1/8" SOLENOID VALVE, 120 VAC/60HZ
Manufacturer
ASCO
Related Documents
ASCO Valve 8256 Sub-Miniature Solenoid Valve Specifications
