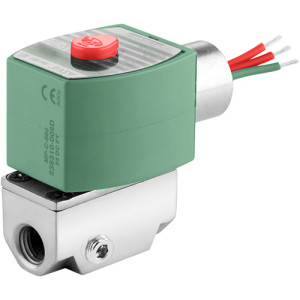

SV311A02N6CF5 | ASCO | Control Valves
GAS SAFETY VALVE 3/8"
Brand:ASCO
MPN:SV311A02N6CF5
SKU:SV311A02N6CF5
List Price:
$1,409.62
Today's Price:
$733.00
Log in for customized pricingproduct specifications
Max Media Temperature
125 °F
Media Compatibility
Fuel Gas
Power Supply
AC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Closed
Orifice Size
3/8 in
Is FM
true
Solenoid Coil
238210-032-D
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Body Material
Aluminum
Approvals
CSA,FM,UL
Cv
1.2
Pipe Size
3/8 in
Wetted Materials
Aluminum, Buna N
Pressure Range
0 - 15 PSI
Supply Voltage (Nominal)
110/50 VAC,120/60 VAC
Function
Gas Safety Shutoff
Seal Material
Buna N
product series features
- 2-way normally closed operation
- For gas pilot control of commercial and industrial gas burners
- Direct lift with resilient soft seating for tight shutoff
- Valves provided with 1/8" NPT downstream pipe tap with plug for routine testing
- Suitable for ambient temperatures up to 175˚F
more information & related documents
Series Description
Two-way normally closed direct acting gas fuel shutoff valves, 1/8" to 3/8" NPT sizes. For gas pilot control of commercial and industrial gas burners. UL, FM, CSA approved.
Kele Description
GAS SAFETY VALVE 3/8"
Manufacturer
ASCO
Related Documents
ASCO-SV311-Gas-Shutoff-Valves-ds-2015
