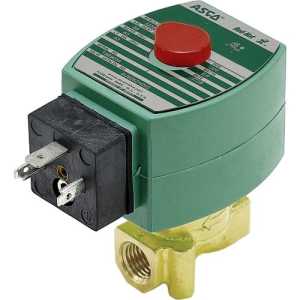

Green rectangular solenoid coil with a red push button on top, attached to a brass valve and a black electrical connector

SU8262H014 DC 24/DC | ASCO | Control Valves

ASCO SU8262H014 2-WAY N/C 1/4" SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:SU8262H014 DC 24/DC

SKU:SU8262H014 DC 24/DC

List Price:

$216.00

Today's Price:

$98.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water,Light Oil

Power Supply

DC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

3/32 in

Solenoid Coil

238512-006

Solenoid Kit

323587

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

Body Material

Brass

0.21 CV

Pipe Size

1/8 in

Wetted Materials

Brass, Buna N

Pressure Range

Air/Inert Gas: 0 - 235 PSI; Water, Oil: 0 - 160 PSI

Supply Voltage (Nominal)

24 VDC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas, Cryogenic, General Service, Hot Water, Steam Service

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil, Steam

product series features

Available in 1/8" to 3/8" pipe sizes
Reliable, proven design for high flows
Small poppet valves for tight shutoff
Mountable in any position
Tapped mounting hole in body
Cryogenic, liquid CO2 valves also available
Look for the ◊ for models available in lead-free brass construction for compliance to Safe Drinking Water Act

more information & related documents

Series Description

Two-way direct acting solenoid valves. 1/8" to 3/8" pipe sizes. Normally closed or normally open general service or hot water/steam valves. Brass and stainless steel constructions. For air, inert gas, water, light oil (to 300 SSU). 8263 also available for steam and hot water service.

Kele Description

ASCO SU8262H014 2-WAY N/C 1/4" SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
