SC8210G002 DC 24/DC | ASCO | Control Valves

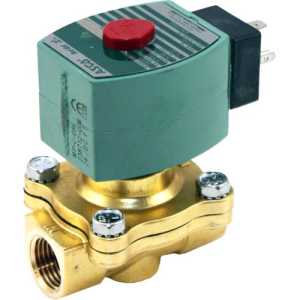

ASCO SC8210G002 2-WAY N/C 1/2" SOLENOID VALVE, 24 VDC
Brand:ASCO
MPN:SC8210G002 DC 24/DC
SKU:SC8210G002 DC 24/DC
List Price:
$448.00
Today's Price:
$203.00
Log in for customized pricingproduct specifications
Body Material
Brass
Max Media Temperature
150 °F
Media Compatibility
Air,Water,Oil
Power Supply
DC Line Power
Type
Two Way
Valve Operation
Normally Closed
Orifice Size
5/8 in
Solenoid Coil
238712-006-*
Solenoid Kit
302373
Enclosure Rating
NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
Cv
4 CV
Pipe Size
1/2 in
Wetted Materials
Brass, Buna N
Pressure Range
Air/Inert Gas: 5 - 125 PSI; Water, Oil: 5 - 100 PSI
Supply Voltage (Nominal)
24 VDC
Seal Material
Buna N Elastomer
product series specifications
Size: 1/2" NPT to 2" NPT
Cv: 4.0, 5.0, 13, 15, 22, 43, 5.5
Materials Of Construction: Body Brass, Seals & Disc NBR or PTFE
Media Compatibility: Clean hot or chilled water, air or inert gas
Media Temperature Range: Maximum 180°F (82°C) water temperature
Supply Voltage: 120 VAC, 60 Hz, 24 VAC, 60 Hz
Action: N.C., N.O. (valve body determines action)
Operating Pressure: Minimum 5 psid (35 kPa), maximum 125 to 150 psid (862 to 1034 kPa), varies by model
Operating Temperature: 32° to 125°F (0° to 52°C)
Enclosure Rating: NEMA 4 (standard Red Hat II enclosure)
Approvals: CSA, UL File #MP618, CE
Warranty: 1 year
product series features
- Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
- High flow capacity valves for liquid, corrosives, and air/inert gas service
- General service models for industrial air compressors, laundry, power washing, industrial water control, pumps
- Normally open gas vent valves or normally closed gas shutoff valves for high pressure applications in control of commercial or industrial gas burners
- Hot water service pilot operated diaphragm valves for high temperature applications in laundries, molding, steam atomization, sterilizers, and autoclaves
- Lead-free versions available for Safe Drinking Water Act compliance
- Long-life, quiet operating valves available for air or inert gas use, extending life up to 20 million cycles in dry air or gas applications
more information & related documents
Series Description
Two-way pilot-operated solenoid valves. Sizes 3/8" to 2-1/2". Normally open and normally closed models. General service valves in brass or stainless steel suitable for air and inert gas, water, light oil. Brass models also available for fuel gas venting, safety shutoff or hot water service.
Kele Description
ASCO SC8210G002 2-WAY N/C 1/2" SOLENOID VALVE, 24 VDC
Manufacturer
ASCO
ASCO Valve Installation Instructions
