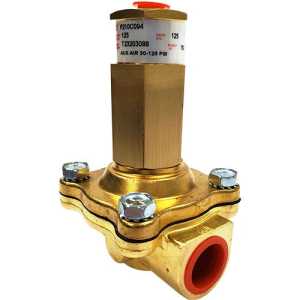

Close-up of a gold-colored brass valve with a tall square stem and a red-capped side port held together with bolts

P210C094 | ASCO | Control Valves

ASCO P210C094 2-WAY N/C 1/2" AIR OPERATED SOLENOID VALVE

Brand:ASCO

MPN:P210C094

SKU:P210C094

List Price:

$3,011.54

Today's Price:

$1,676.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Media Compatibility

Air

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

5/8 in

Enclosure Rating

NEMA 1

3.6 CV

Pipe Size

1/2 in

Wetted Materials

Brass, Buna N

Pressure Range

0 - 125 PSI

Function

Air Operated

Seal Material

Buna N Elastomer

more information & related documents

Series Description

Air-Operated Valve. Normally Closed (Closed when Pneumatic Operator Exhausted) 1/2" NPT Pipe Size, 5/8" Orifice, Cv=3.6. Pressure in PSI: Min: 0, Max: 125. Body: Brass, Elastomer: Buna-N. Enclosure: General Purpose: NEMA 1 <br>

Kele Description

ASCO P210C094 2-WAY N/C 1/2" AIR OPERATED SOLENOID VALVE

Manufacturer

ASCO
