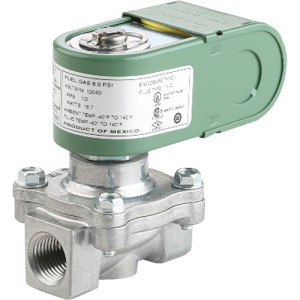

K3A552V | ASCO | Control Valves

Name: K3A552V
Brand: ASCO
SKU: K3A552V
Price: 276 USD
Availability: InStock

VALVE SOL GAS NC 3/4" 120V 3#

Brand:ASCO

MPN:K3A552V

SKU:K3A552V

List Price:

$530.77

Today's Price:

$276.00

This item is in stock at a regional store, to get it shipped faster.

product specifications

Max Media Temperature

140 °F

Media Compatibility

Fuel Gas

Power Supply

AC Line Power

Type

Two Way

Connection

NPT

Sensor Type

Two Way

Valve Operation

Normally Closed

Orifice Size

3/4 in

Is FM

true

Gas Capacity

512,000 BTU/Hr

Solenoid Coil

529028-041-D

Enclosure Rating

NEMA 1

Body Material

Aluminum

Approvals

CSA,FM,UL

9.5

Pipe Size

3/4 in

Wetted Materials

Aluminum, Buna N

Pressure Range

0 - 3 PSI

Supply Voltage (Nominal)

120/60 VAC

Function

Low Pressure Gas Shutoff

Seal Material

Buna N

product series features

2-way normally closed operation
Die-cast aluminum bodies
For positive shutoff on pilot or main gas lines of commercial and industrial gas burners
Valves provided with 1/8" NPT upstream and dowstream pipe tap with plug for routine testing
Broad ambient temperature range -40˚F up to 170˚F

more information & related documents

Series Description

Aluminum body two-way normally closed fuel gas shutoff valves for low and high pressure. For positive shutoff on pilot or main gas lines of commercial and industrial gas burners. UL, FM, CSA approved.

Kele Description

VALVE SOL GAS NC 3/4" 120V 3#

Manufacturer

ASCO
