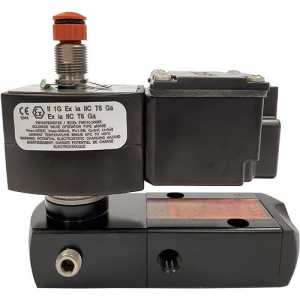

Industrial spool valve assembly with a heavy black base and a large black coil with a warning label, topped by an orange button on a metal stem.

JPIS8551B301 DC 24/DC | ASCO | Control Valves

ASCO JPIS8551B301 3-WAY 1/4" INTRINSICALLY SAFE SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:JPIS8551B301 DC 24/DC

SKU:JPIS8551B301 DC 24/DC

List Price:

$1,507.00

Today's Price:

$684.00

Lead time of 2 days. Chat with Kele experts now

product specifications

Body Material

Black Anodized Aluminum

Max Media Temperature

149 °F

Media Compatibility

Air

Power Supply

DC Line Power

Type

Three Way

Orifice Size

1/4 in

Solenoid Coil

298008-002

Enclosure Rating

IP66,IP67,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P

Is SIL

true

0.86 CV

Pipe Size

1/4 in

Wetted Materials

Black Anodized Aluminum, Buna N

Pressure Range

35 - 130 PSI

Supply Voltage (Nominal)

24 VDC

Function

Intrinsically Safe

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas

Solenoid Valve Type: Three Way, 5/2

Operation: Single Solenoid, NAMUR Mount

Body Material: Aluminum, Brass

Pipe Size: 1/4 Inch, 1/2 Inch

Valve Media: Air-Inert Gas

Explosion-Proof: Yes

product series features

Compact spool valve, convertible from 3/2 to 5/2
Black anodized aluminum, brass, or stainless steel bodies
NAMUR mount construction
Standard manual operator
Mountable in any position
Vents are from spring side to prevent actuator corrosion
RedHat II, watertight, explosion-proof, or intrinsically safe (SIL-3 Capable) solenoids available

more information & related documents

Series Description

Direct-mount 3-way or 4-way, 5-ported, 2-position piloted spool-type solenoid valves for air or inert gas service. Sizes 1/4" or 1/2". UL, CSA, CE approvals. FM, CSA, IECEx, SIL-3 intrinsically safe models available.

Kele Description

ASCO JPIS8551B301 3-WAY 1/4" INTRINSICALLY SAFE SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
