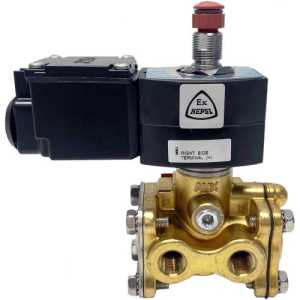

A brass industrial solenoid valve topped with a black rectangular coil housing and a red push‑button override on a stainless spindle.

JPIS8316B301 DC 24/DC | ASCO | Control Valves

ASCO JPIS8316B301 3-WAY N/C 1/4" INTRINSICALLY SAFE SOLENOID VALVE

Brand:ASCO

MPN:JPIS8316B301 DC 24/DC

SKU:JPIS8316B301 DC 24/DC

List Price:

$3,045.00

Today's Price:

$1,382.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

149 °F

Media Compatibility

Air-Inert Gas

Power Supply

DC Line Power

Type

Three Way

Valve Operation

Normally Closed

Orifice Size

5/16 in

Is FM

true

Solenoid Coil

298008-002

Solenoid Kit

325074

Is SIL

true

Body Material

Brass

1.5 CV

Pipe Size

1/4 in

Wetted Materials

Brass, NBR

Pressure Range

0 - 130 PSI

Supply Voltage (Nominal)

24 VDC

Seal Material

NBR Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed

Body Material: Brass

Pipe Size: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids

product series features

Available in 3/8" to 1" pipe sizes, normally closed or normally open operation
Diaphragm poppet brass body valve for controlling air, inert gas, and liquids with max fluid temperatures to 180°F
For operating pressure differential from 10 to 250 psi
Internal piloting controls large orifices to provide high flows
Can be used to pilot large actuators for quick closure of large control valves
Resilient seating for tight shutoff
CSA certified, meets all CE directives. Optional ATEX/IECEx approvals
Mountable in any position
Minimum operating pressure differential must be maintained between pressure and exhaust ports
Supply and exhaust piping must be full area, unrestricted
Flow controls and similar components must be installed in cylider lines only

more information & related documents

Series Description

Three-way pilot-operated diaphragm solenoid valves. 1/8" to 1/4" pipe size. Normally closed or normally open operation. Brass body. For high flow applications.

Kele Description

ASCO JPIS8316B301 3-WAY N/C 1/4" INTRINSICALLY SAFE SOLENOID VALVE

Manufacturer

ASCO
