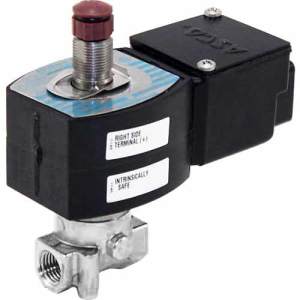

Stainless solenoid valve with black housing and red override button.

JPIS8314B301 DC 24/DC | ASCO | Control Valves

ASCO JPIS8314B301 3-WAY UNIV 1/4" INTRINSICALLY SAFE SOLENOID VALVE 24 VDC

Brand:ASCO

MPN:JPIS8314B301 DC 24/DC

SKU:JPIS8314B301 DC 24/DC

List Price:

$1,774.00

Today's Price:

$805.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

149 °F

Media Compatibility

Air-Inert Gas,Water-Clean Liquids,Light Oil

Power Supply

DC Line Power

Type

Three Way

Valve Operation

Universal

Orifice Size

1/20 in

Is FM

true

Solenoid Coil

238614-032-D*

Solenoid Kit

323593

Is SIL

true

Body Material

Stainless Steel

0.06 CV

Pipe Size

1/4 in

Wetted Materials

Stainless Steel, NBR

Pressure Range

0 - 130 PSI N/C; 0 - 105 PSI N/O

Supply Voltage (Nominal)

24 VDC

Seal Material

NBR Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed, Universal

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/8" to 1/4" pipe sizes, normally closed, normally open, or universal operation
For air/inert gas, water, light oil with maximum fluid temperature 200°F
No minimum operating pressure required
High-speed general service for basic three-way pilot operation
Use when the exhaust flow needs to be directed through the top of the solenoid valve
Can be used for low-volume fluid diversion

more information & related documents

Series Description

Three-way direct-acting poppet solenoid valves. 1/8" to 1/4" pipe size. Normally closed, normally open, or universal operation. Brass or stainless steel bodies. For applications that demand high cycles with moderate flow.

Kele Description

ASCO JPIS8314B301 3-WAY UNIV 1/4" INTRINSICALLY SAFE SOLENOID VALVE 24 VDC

Manufacturer

ASCO
