JPIS8223B323 DC 24/DC | ASCO | Control Valves

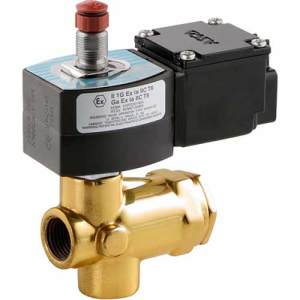

ASCO JPIS8223B323 2-WAY N/C 3/8" INTRINSICALLY SAFE SOLENOID VALVE, 24 VDC
Brand:ASCO
MPN:JPIS8223B323 DC 24/DC
SKU:JPIS8223B323 DC 24/DC
List Price:
$1,865.38
Today's Price:
$970.00
Log in for customized pricingproduct specifications
Max Media Temperature
149 °F
Media Compatibility
Air-Inert Gas
Power Supply
DC Line Power
Type
Two Way
Connection
NPT
Sensor Type
Two Way
Valve Operation
Normally Closed
Orifice Size
5/16 in
Is FM
true
Solenoid Coil
298008-002
Solenoid Kit
325210
Enclosure Rating
NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,IP66,IP67
Body Material
Brass
Approvals
CE,CSA,FM,ATEX,IECEx
Cv
1.5
Pipe Size
3/8 in
Wetted Materials
Brass, PUR/Buna N
Pressure Range
10 - 130 PSI
Supply Voltage (Nominal)
24 VDC
Function
Intrinsically Safe
Seal Material
Buna N,PUR
product series specifications
Valve Function: High Pressure
Solenoid Valve Type: Two Way
Operation: Normally Closed
Body Material:Brass
Pipe Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Rugged piston construction built to withstand pressure ratings to 1500 PSI
- Available in 1/4" to 3/4" pipe sizes
- Angle-body design with 90° inlet and outlet post design for high flow rates
- Mountable in any position
- Brass body, stainless steel core tube and spring
- Handles air, water, and oil media
more information & related documents
Series Description
Two-way pilot-operated high pressure solenoid valves. Sizes 1/4" to 3/4". Normally closed operation. High pressure valves with brass body.
Kele Description
ASCO JPIS8223B323 2-WAY N/C 3/8" INTRINSICALLY SAFE SOLENOID VALVE, 24 VDC
Manufacturer
ASCO
ASCO Valve 8223 High Pressure Solenoid Valve Specifications
