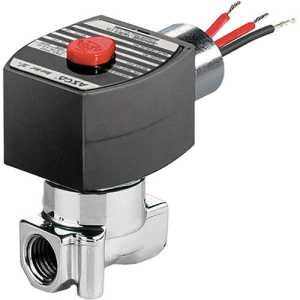

Shiny metal solenoid valve with black rectangular coil, red cap and red and black wires

EFHTL8262H007 120/60,110/50 | ASCO | Control Valves

ASCO EFHTL8262H007 2-WAY N/C 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:EFHTL8262H007 120/60,110/50

SKU:EFHTL8262H007 120/60,110/50

List Price:

$692.31

Today's Price:

$360.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Stainless Steel

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water,Light Oil

Power Supply

AC Line Power

Type

Two Way

Valve Operation

Normally Closed

Orifice Size

1/8 in

Solenoid is EF

true

Solenoid Coil

238414-032-K

Solenoid Kit

323583

Enclosure Rating

NEMA 3,NEMA 3S,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,NEMA 7,NEMA 9

0.35 CV

Pipe Size

1/4 in

Wetted Materials

Stainless Steel, Buna N

Pressure Range

Air/Inert Gas: 0 - 140 PSI; Water: 0 - 165 PSI; Oil: 0 - 90 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas, Cryogenic, General Service, Hot Water, Steam Service

Solenoid Valve Type: Two Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil, Steam

product series features

Available in 1/8" to 3/8" pipe sizes
Reliable, proven design for high flows
Small poppet valves for tight shutoff
Mountable in any position
Tapped mounting hole in body
Cryogenic, liquid CO2 valves also available
Look for the ◊ for models available in lead-free brass construction for compliance to Safe Drinking Water Act

more information & related documents

Series Description

Two-way direct acting solenoid valves. 1/8" to 3/8" pipe sizes. Normally closed or normally open general service or hot water/steam valves. Brass and stainless steel constructions. For air, inert gas, water, light oil (to 300 SSU). 8263 also available for steam and hot water service.

Kele Description

ASCO EFHTL8262H007 2-WAY N/C 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
