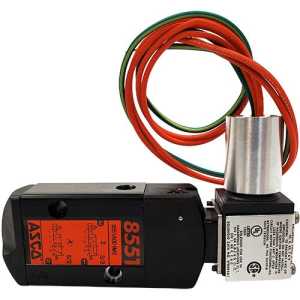

Industrial pneumatic spool valve with a black rectangular body bearing an orange diagram, attached to a silver coil with multicolored wires coiled around.

EF8551A001MS AC 120/60,110/50D | ASCO | Control Valves

ASCO EF8551A001MS 4-WAY EXP PRF 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:EF8551A001MS AC 120/60,110/50D

SKU:EF8551A001MS AC 120/60,110/50D

List Price:

$691.00

Today's Price:

$285.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Aluminum

Max Media Temperature

104 °F

Type

4-way

Valve Operation

Universal

0.86 CV

Pipe Size

1/4 in

Pressure Range

30 - 150 PSI

Supply Voltage (Nominal)

120 VAC,110 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas

Solenoid Valve Type: Three Way, 5/2

Operation: Single Solenoid, NAMUR Mount

Body Material: Aluminum, Brass

Pipe Size: 1/4 Inch, 1/2 Inch

Valve Media: Air-Inert Gas

Explosion-Proof: Yes

product series features

Compact spool valve, convertible from 3/2 to 5/2
Black anodized aluminum, brass, or stainless steel bodies
NAMUR mount construction
Standard manual operator
Mountable in any position
Vents are from spring side to prevent actuator corrosion
RedHat II, watertight, explosion-proof, or intrinsically safe (SIL-3 Capable) solenoids available

more information & related documents

Series Description

Direct-mount 3-way or 4-way, 5-ported, 2-position piloted spool-type solenoid valves for air or inert gas service. Sizes 1/4" or 1/2". UL, CSA, CE approvals. FM, CSA, IECEx, SIL-3 intrinsically safe models available.

Kele Description

ASCO EF8551A001MS 4-WAY EXP PRF 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
