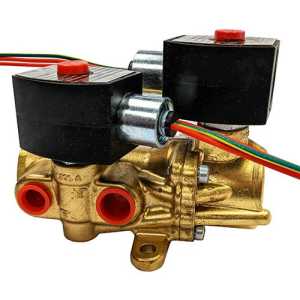

Side view of a golden brass valve with two large black solenoid coils on top, red inlet and outlet ports, and multi‑colored wires attached.

EF8344G044 AC 120/60,110/50 D | ASCO | Control Valves

ASCO EF8344G044 4-WAY 3/8" EXPLOSION PROOF DUAL SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:EF8344G044 AC 120/60,110/50 D

SKU:EF8344G044 AC 120/60,110/50 D

List Price:

$3,291.00

Today's Price:

$1,494.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Brass

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas,Water,Oil

Power Supply

AC Line Power

Type

Four Way

Valve Operation

Universal

Orifice Size

1/4 in

Solenoid is EF

true

Solenoid Coil

238214-032-D*

Solenoid Kit

302721

Enclosure Rating

NEMA 3,NEMA 3S,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,NEMA 7,NEMA 9

0.8 CV

Pipe Size

1/4 in

Wetted Materials

Brass, Buna N

Pressure Range

Air/Inert Gas: 10 - 250 PSI; Water: 10 - 200; Oil: 10 - 125 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Four Way

Operation: Single Solenoid, Dual Solenoid

Body Material: Brass

Pipe Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/4" to 1" pipe sizes, single or dual solenoid construction
Piston-operated poppet design for high flow applications
Sturdy, robust construction can be used with air, water or light oils (@300 SSU)
Valves are mountable in any position for installation flexiblity
Dual solenoid can be shifted with a momentary signal, and remain in position even at power loss
Also available in low power, intrinsically safe, voltage ranging, and long life models. Call Lesman's factory-trained ASCO specialists for help

more information & related documents

Series Description

Four-way pilot operated solenoid valves. 1/4" to 1" pipe sizes, single or dual solenoids. Brass body. For air, inert gas, water or light oil use in analytical and diagnostic instruments, biofuels, heating equipment, life science production, and refining.

Kele Description

ASCO EF8344G044 4-WAY 3/8" EXPLOSION PROOF DUAL SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
