EF8342G001 AC 120/60 D | ASCO | Control Valves

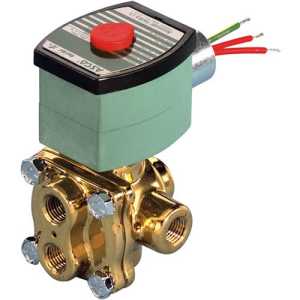

ASCO EF8342G001 4-WAY EXP PRF 1/4" SOLENOID VALVE, 120 VAC/60 HZ
Brand:ASCO
MPN:EF8342G001 AC 120/60 D
SKU:EF8342G001 AC 120/60 D
List Price:
$1,483.00
Today's Price:
$673.00
Log in for customized pricingproduct specifications
Body Material
Aluminum
Max Media Temperature
160 °F
Media Compatibility
Air-Inert Gas
Power Supply
AC Line Power
Type
Four Way
Valve Operation
Universal
Orifice Size
5/64 in
Solenoid is EF
true
Solenoid Coil
272614-132-D*
Solenoid Kit
306191
Enclosure Rating
NEMA 3,NEMA 3S,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,NEMA 7,NEMA 9
Cv
0.1 CV
Pipe Size
1/4 in
Wetted Materials
Aluminum, Buna N
Pressure Range
0 - 150 PSI
Supply Voltage (Nominal)
120/60 VAC
Seal Material
Buna N Elastomer
product series specifications
Valve Function: General Service, Pilot Valve
Solenoid Valve Type: Four Way
Operation: Single Solenoid, Dual Solenoid, NAMUR Mount
Body Material: Brass, Stainless Steel
Pipe Size: 1/4 Inch, 3/8 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/4" and 3/8" pipe sizes, single or dual solenoid construction
- Direct acting, high flow side-style valve
- Flow control option regulates cylinder speed independently in either direction
- No minimum operating pressure required to shift valve
- NAMUR mount pilot valve model available in single or dual solenoid, brass or 304 stainless steel construction, for air/inert gas use only
more information & related documents
Series Description
Four-way direct-acting solenoid valves. 1/4" and 3/8" pipe sizes, in-line single or dual solenoids. Brass or stainless steel body. For general service air, inert gas, water or light oil use or pilot control applications.
Kele Description
ASCO EF8342G001 4-WAY EXP PRF 1/4" SOLENOID VALVE, 120 VAC/60 HZ
Manufacturer
ASCO
ASCO Valve 8342 Four-Way Direct Mount Pilot Solenoid Valve Specifications
