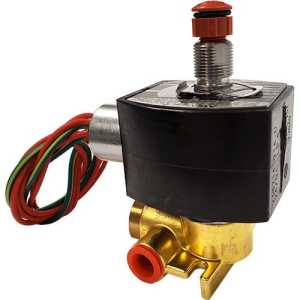

small valve with a brass base, black block coil and a tall metal stem topped with red

EF8317H307 DC 24/DC D | ASCO | Control Valves

ASCO EF8317H307 3-WAY UNIV EXP PRF 1/4" SOLENOID VALVE, 24 VDC

Brand:ASCO

MPN:EF8317H307 DC 24/DC D

SKU:EF8317H307 DC 24/DC D

List Price:

$1,236.54

Today's Price:

$643.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Max Media Temperature

180 °F

Media Compatibility

Air-Inert Gas

Power Supply

DC Line Power

Type

Three Way

Valve Operation

Universal

Orifice Size

1/16 in

Solenoid is EF

true

Solenoid Coil

238714-913-D*

Solenoid Kit

325109

Enclosure Rating

NEMA 3,NEMA 3S,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,NEMA 7,NEMA 9

Body Material

Brass

0.08 CV

Pipe Size

1/4 in

Wetted Materials

Brass, Buna N, Nylon

Pressure Range

0 - 150 PSI

Supply Voltage (Nominal)

24 VDC

Function

Air or Inert Gas

Seal Material

Buna N, Nylon Elastomer

product series specifications

Valve Function: General Service

Solenoid Valve Type: Three Way

Operation: Normally Open, Normally Closed

Body Material: Brass, Stainless Steel

Pipe Size: 1/4 Inch, 3/8 Inch

Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil

product series features

Available in 1/4" or 3/8" pipe sizes, normally closed or normally open operation
Pilot-operated brass or stainless steel body valve for air, inert gas, and water with max fluid temperatures to 180°F
Designed for quick venting to 0 psi through the exhaust orifice
Resilient-seated poppets for tight shutoff
Air exhausted to quickly shift control valves
CSA certified, UL listed general purpose valves, meets all CE directives. Optional ATEX/IECEx approvals
Mountable in any position
Minimum operating pressure differential must be maintained between pressure and exhaust ports
Supply and exhaust piping must be full area, unrestricted
Flow controls and similar components must be installed in cylider lines only

more information & related documents

Series Description

Three-way pilot-operated quick exhaust solenoid valves. 1/4" and 3/8" pipe size. Normally closed or normally open operation. Brass or 304 stainless steel body. Fits a wide variety of industrial applications.

Kele Description

ASCO EF8317H307 3-WAY UNIV EXP PRF 1/4" SOLENOID VALVE, 24 VDC

Manufacturer

ASCO
