EF8300D009U AC 120/60 D | ASCO | Control Valves

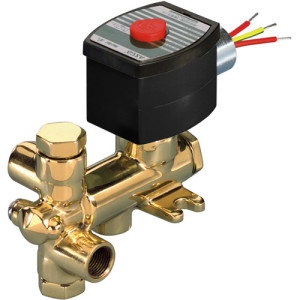

ASCO 3-WAY UNIV 3/8 X 1/4 EXPLOS PROOF GEN SERV SOL VLV: BRASS, BUNA N, PHOS BRZ
Brand:ASCO
MPN:EF8300D009U AC 120/60 D
SKU:EF8300D009U AC 120/60 D
List Price:
$3,538.46
Today's Price:
$1,840.00
Log in for customized pricingproduct specifications
Max Media Temperature
200 °F
Media Compatibility
Air-Inert Gas,Light Oil,Water
Power Supply
AC Line Power
Type
Three Way
Connection
NPT
Sensor Type
Three Way
Valve Operation
Universal
Orifice Size
1/4 in
Solenoid is EF
true
Solenoid Coil
222345-005-D
Solenoid Kit
306688-U
Enclosure Rating
NEMA 3,NEMA 3S,NEMA 4,NEMA 4X,NEMA 6,NEMA 6P,NEMA 7,NEMA 9
Body Material
Brass
Approvals
CE,CSA
Cv
0.45
Pipe Size
3/8 in
Wetted Materials
Brass, Buna N, Phosphor Bronze
Pressure Range
0 - 120 PSI
Supply Voltage (Nominal)
120/60 VAC
Function
General Service
Seal Material
Buna N
product series specifications
Valve Function: General Service
Solenoid Valve Type: Three Way
Operation: Normally Open, Normally Closed, Universal
Body Material: Brass, Stainless Steel
Pipe Size: 1/8 Inch, 1/4 Inch, 3/8 Inch, 1/2 Inch
Valve Media: Air-Inert Gas, Water-Clean Liquids, Light Oil
product series features
- Available in 1/8" to 1/2" pipe sizes, normally closed, normally open, or universal operation
- For air/inert gas, water, light oil with maximum fluid temperature 200F
- Three pipe connections and two orifices
- Direct acting; requires no minimum operating pressure
- Choose metal seats and discs (standard) to handle aggressive fluids
- Choose resilient NBR seats and brass discs for airtight shutoff
- Ideal for applications in power plants; commonly used to apply pressure to an exhaust from a valve actuator or single-acting cylinder
more information & related documents
Series Description
Three-way direct-acting general service solenoid valves. 1/8" to 1/2" pipe size. Normally closed, normally open, or universal operation. Brass or stainless steel bodies with metal seats and discs (standard). For high flow and high pressure operations with air, inert gas, water, or light oil.
Kele Description
ASCO 3-WAY UNIV 3/8 X 1/4 EXPLOS PROOF GEN SERV SOL VLV: BRASS, BUNA N, PHOS BRZ
Manufacturer
ASCO
Related Documents
ASCO Valve 8300 Three-Way Solenoid Valve Specifications
