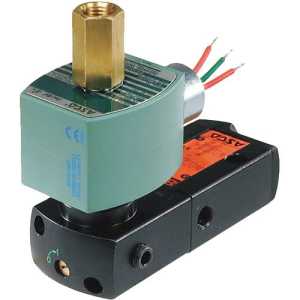

Close-up of an electrically actuated spool valve: a green rectangular coil connected to a black block-shaped valve body with multiple ports, and three colored wires extending from the coil.

8551G401MO AC 120/60,110/50 D | ASCO | Control Valves

ASCO 8551G401MO 4-WAY 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Brand:ASCO

MPN:8551G401MO AC 120/60,110/50 D

SKU:8551G401MO AC 120/60,110/50 D

List Price:

$686.00

Today's Price:

$311.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Body Material

Aluminum

Media Compatibility

Air

Power Supply

AC Line Power

Type

Four Way

Orifice Size

1/4 in

Solenoid Coil

238610-032-D

Enclosure Rating

NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X

0.86 CV

Pipe Size

1/4 in

Wetted Materials

Aluminum, Buna N

Pressure Range

30 - 150 PSI

Supply Voltage (Nominal)

120/60 VAC,110/50 VAC

Seal Material

Buna N Elastomer

product series specifications

Valve Function: Air or Inert Gas

Solenoid Valve Type: Three Way, 5/2

Operation: Single Solenoid, NAMUR Mount

Body Material: Aluminum, Brass

Pipe Size: 1/4 Inch, 1/2 Inch

Valve Media: Air-Inert Gas

Explosion-Proof: Yes

product series features

Compact spool valve, convertible from 3/2 to 5/2
Black anodized aluminum, brass, or stainless steel bodies
NAMUR mount construction
Standard manual operator
Mountable in any position
Vents are from spring side to prevent actuator corrosion
RedHat II, watertight, explosion-proof, or intrinsically safe (SIL-3 Capable) solenoids available

more information & related documents

Series Description

Direct-mount 3-way or 4-way, 5-ported, 2-position piloted spool-type solenoid valves for air or inert gas service. Sizes 1/4" or 1/2". UL, CSA, CE approvals. FM, CSA, IECEx, SIL-3 intrinsically safe models available.

Kele Description

ASCO 8551G401MO 4-WAY 1/4" SOLENOID VALVE, 120/60, 110/50 VAC

Manufacturer

ASCO
