8353C035 | ASCO | Control Valves

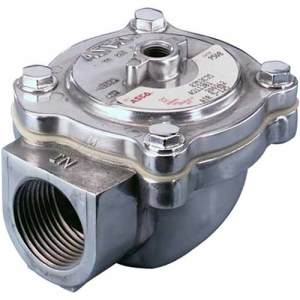

ASCO 8353C035 2-WAY 2-POS 1" SOLENOID VALVE, REMOTE PILOT
Brand:ASCO
MPN:8353C035
SKU:8353C035
List Price:
$406.00
Today's Price:
$184.00
Log in for customized pricingproduct specifications
Max Media Temperature
185 °F
Media Compatibility
Air-Inert Gas
Type
Two Way
Connection
NPT
Sensor Type
Four Way
Valve Operation
2-Position
Orifice Size
11/8 in
Solenoid Coil
-
Enclosure Rating
NEMA 1
Body Material
Aluminum
Cv
20
Pipe Size
1 in
Wetted Materials
Aluminum, Hytrel
Pressure Range
15 - 125 PSI
Function
Dust Collector
Seal Material
Hytrel
product series specifications
Valve Function: Dust Collector
Solenoid Valve Type: Two Way
Operation: Normally Closed
Body Material: Aluminum
Pipe Size: 3/4 Inch, 1 Inch, 1-1/2 Inch
Valve Media: Air-Inert Gas
product series features
- Available in 3/4" to 2" pipe sizes, two-way normally closed operation valves
- Main pulse valves for filter cleaning in reverse jet-type dust collector systems
- High flow Cvs to 140 for effective bag cleaning
- Fast opening/closing and high cycle life
- Models available with integral compression fittings for fast, easy, and secure installation
more information & related documents
Series Description
Two-way high flow main pulse solenoid valves. 3/4" to 2" pipe size, normally closed operation. Aluminum body. For air or inert gas media in dust collector filter cleaning applications.
Kele Description
ASCO 8353C035 2-WAY 2-POS 1" SOLENOID VALVE, REMOTE PILOT
Manufacturer
ASCO
ASCO-Valve-8353-Pulse-Integral-Fittings
